BLS Structural Steel
BLS Structural Steel

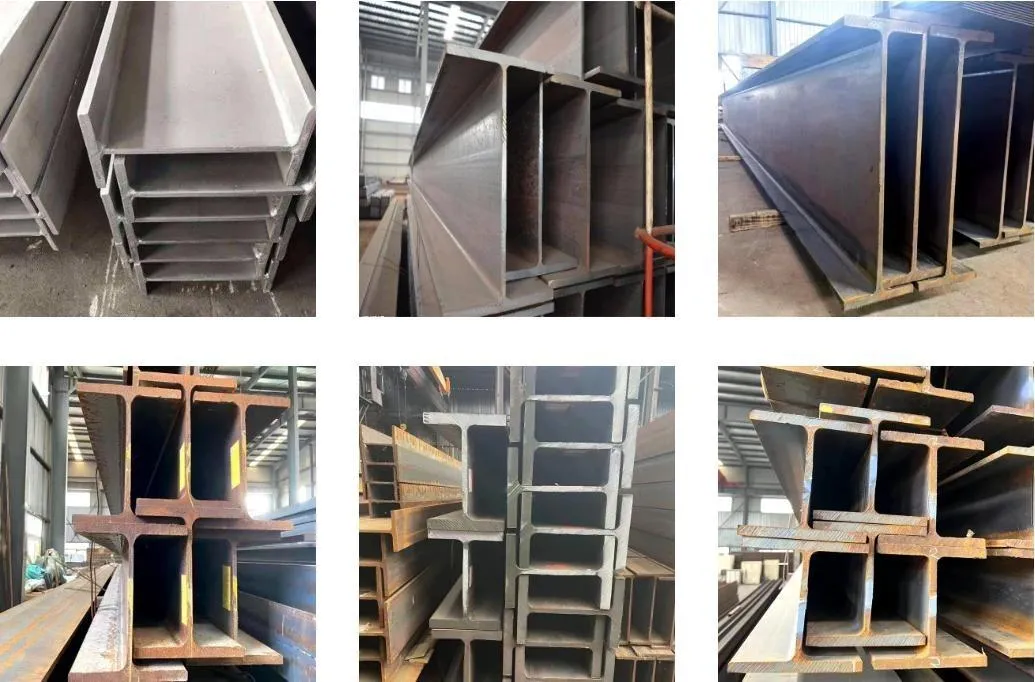

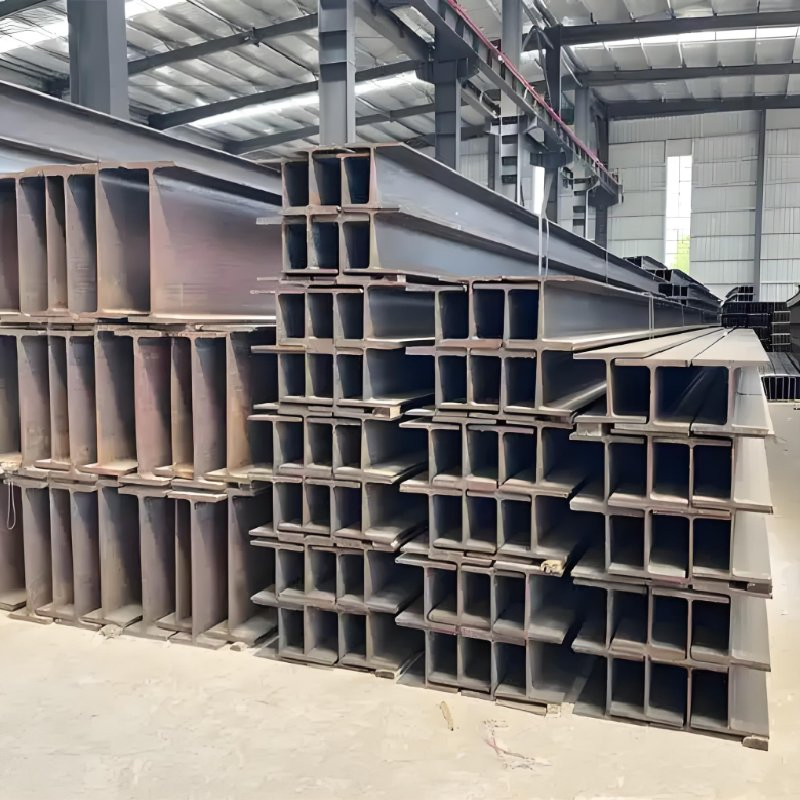

H-beam is structurally optimized as each part is arranged at right angles. This design provides significant advantages including strong bending resistance, simplified construction processes, cost efficiency, and a lightweight structure capable of supporting loads in all directions. It is a preferred choice for factories, high-rise buildings, bridges, lifting machinery, equipment foundations, and foundation piles.
| Technical Specifications | |
|---|---|
| Product Name | Universal Steel Profile Column H beam or I beam |

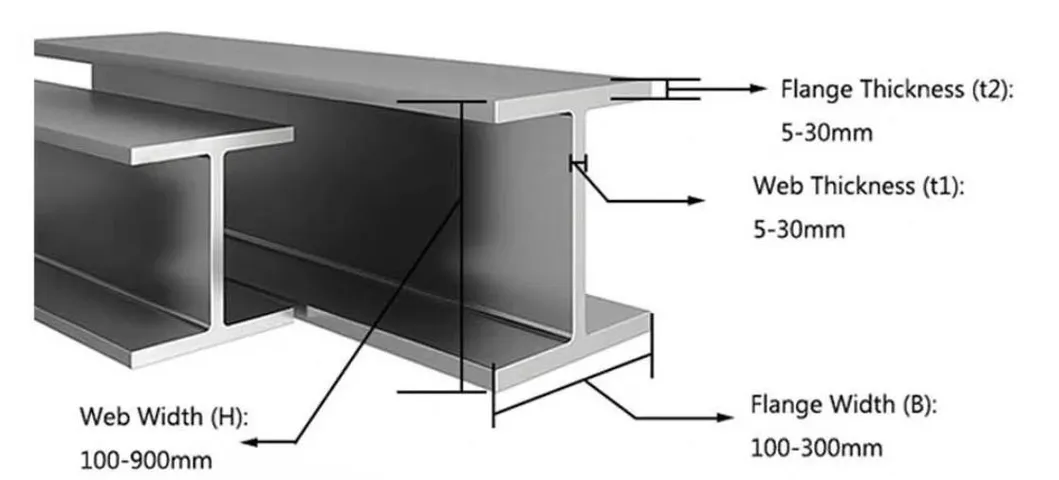

| Size Range | Web Width: 100-900mm; Flange Width: 100-300mm; Thickness: 5-30mm |
| Standard | ASTM, JIS, SUS, DIN, EN, GB, etc. |
| Material Grade | A36, A572, SS400, Q235B, Q345B, S235, S275, S355 |
| Technique | Hot Rolled / Welded |
| Application | Construction Structure and Infrastructure |
| Specification | Height (mm) | Width (mm) | Web Thk (mm) | Wing Thk (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| IPE80 | 80 | 46 | 3.8 | 5.2 | 6.0 |
| IPE100 | 100 | 55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120 | 64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140 | 73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160 | 82 | 5.0 | 7.4 | 15.8 |
| IPE200 | 200 | 100 | 5.6 | 8.5 | 22.4 |
| IPE300 | 300 | 150 | 7.1 | 10.7 | 42.2 |
| IPE400 | 400 | 180 | 8.6 | 13.5 | 66.3 |
| IPE600 | 600 | 220 | 12.0 | 19.0 | 122.0 |
