BLS Structural Steel
BLS Structural Steel
| Model NO. | Steel PFC | Type | Hot Rolled |
| Standard | AS/NZS 3679.1 | Shape | U Channel |
| Surface | Hot Dipped Galvanized | Grade | G300/G350/Q235B/Q355b |
| Application | Retaining Wall Post | Capacity | 2000tons Per Month |

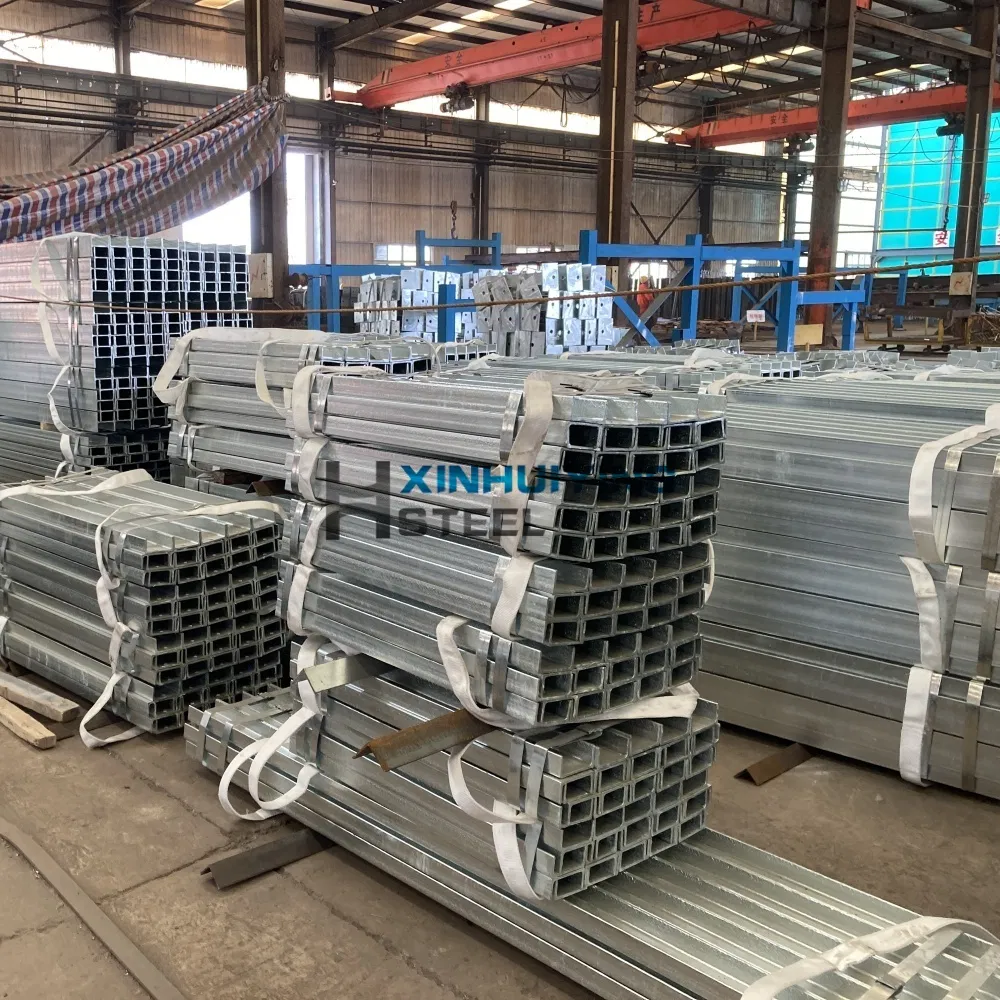

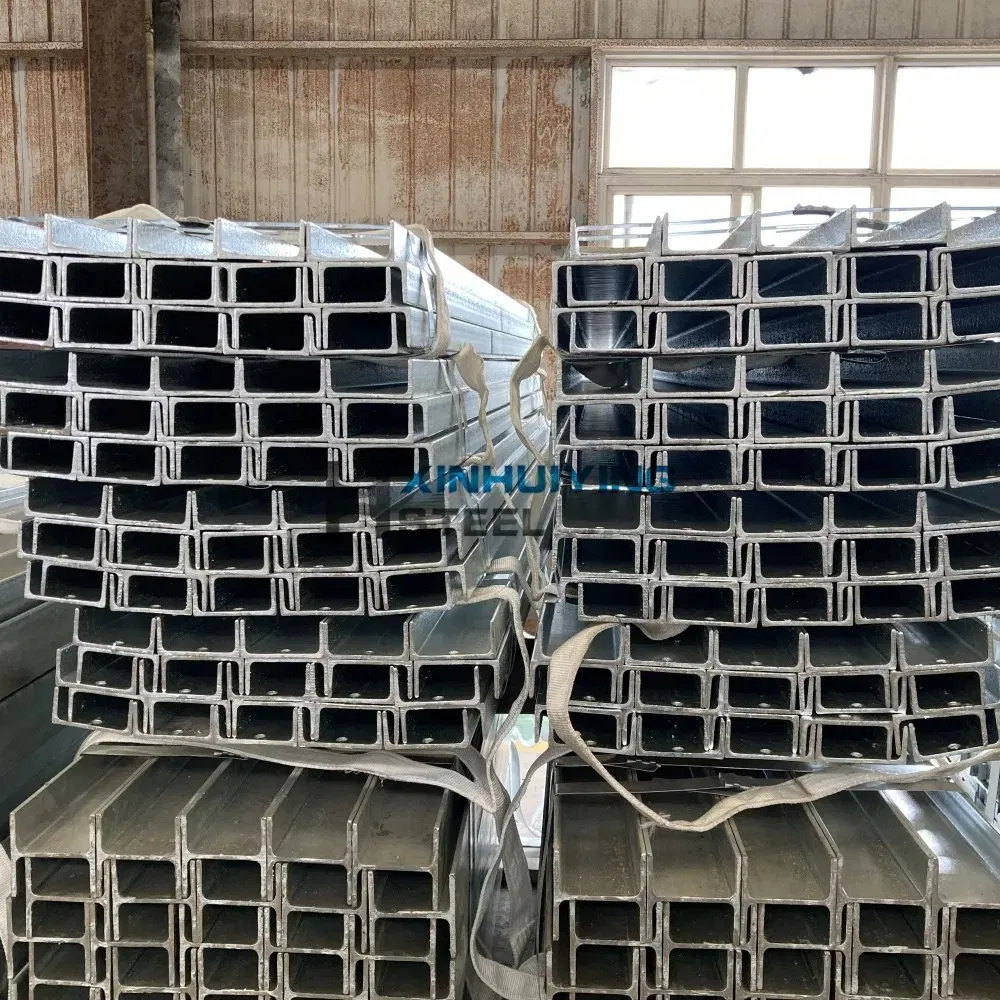

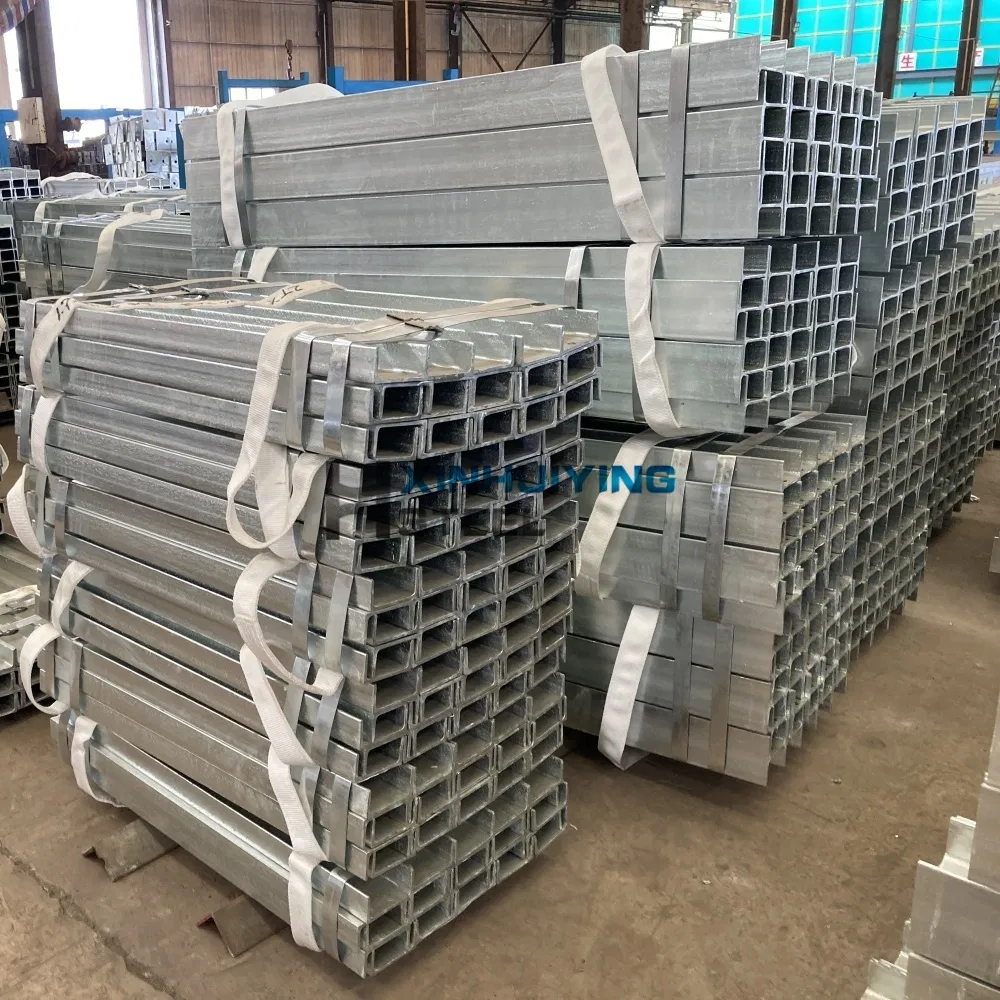

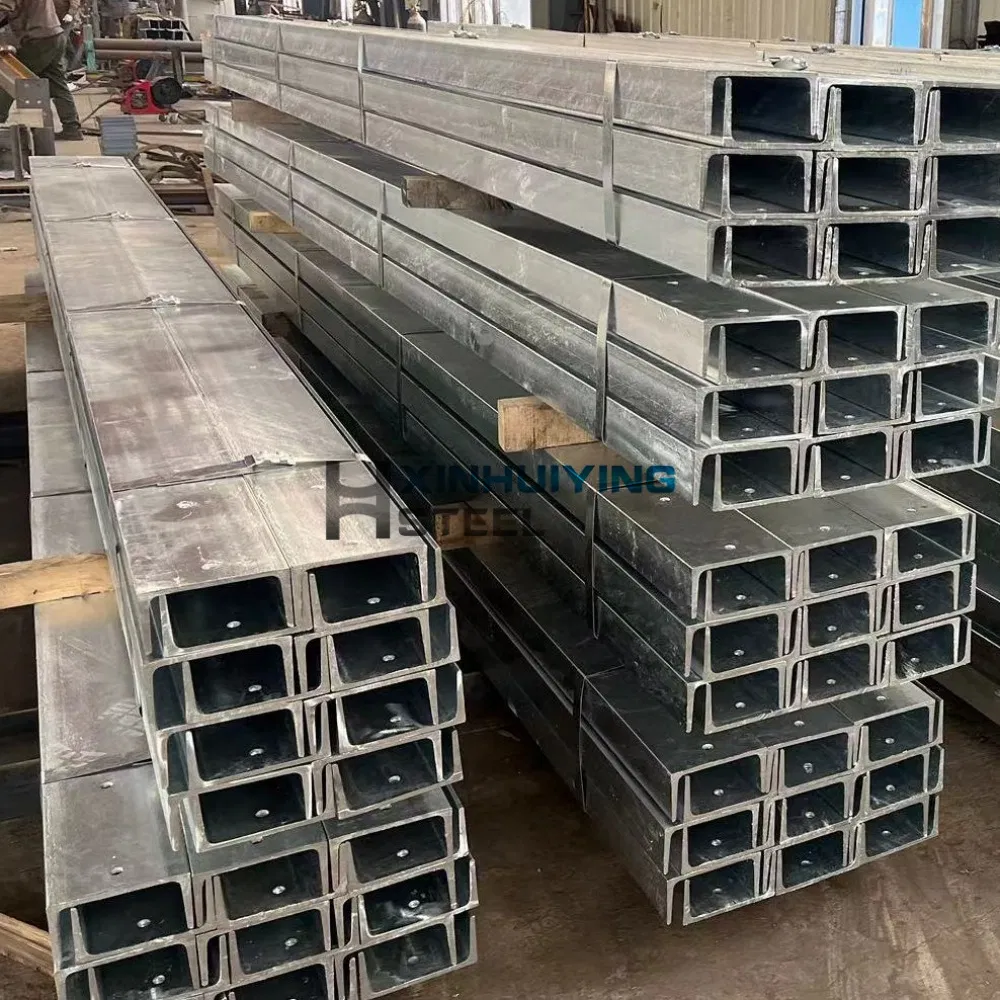

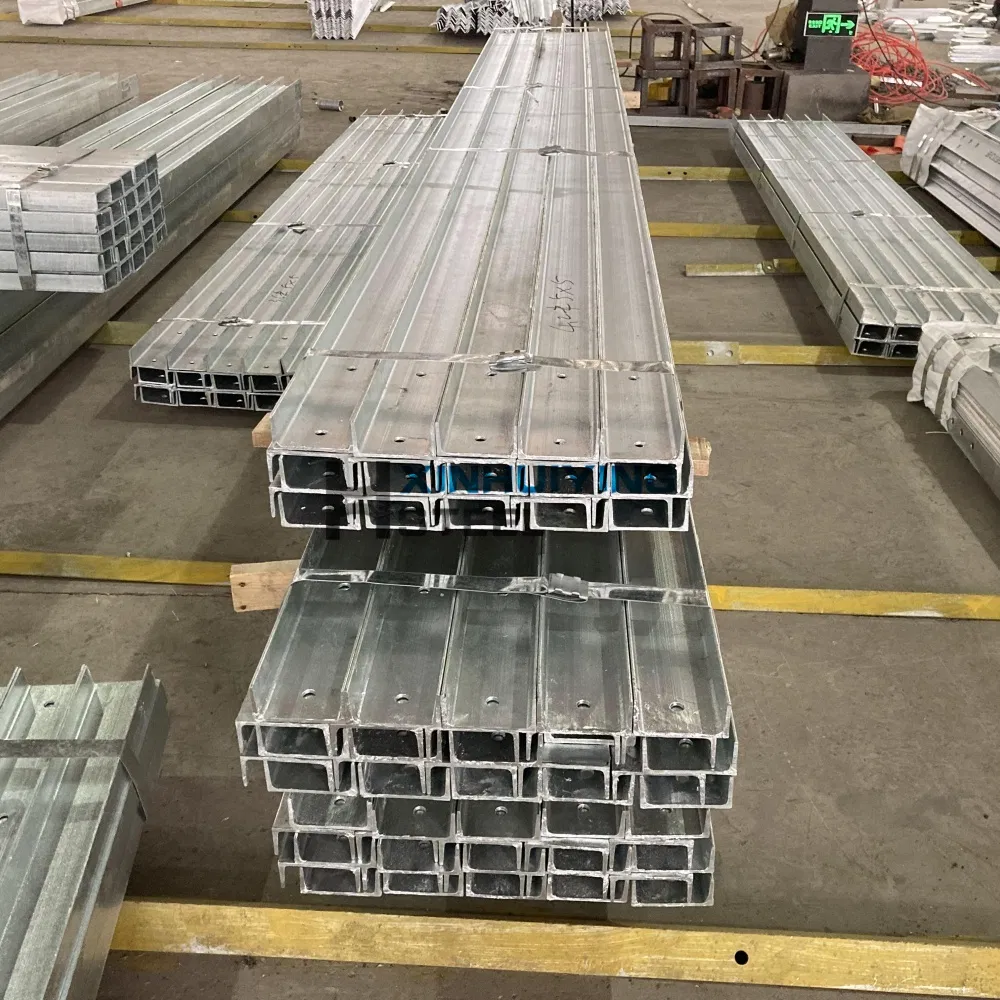

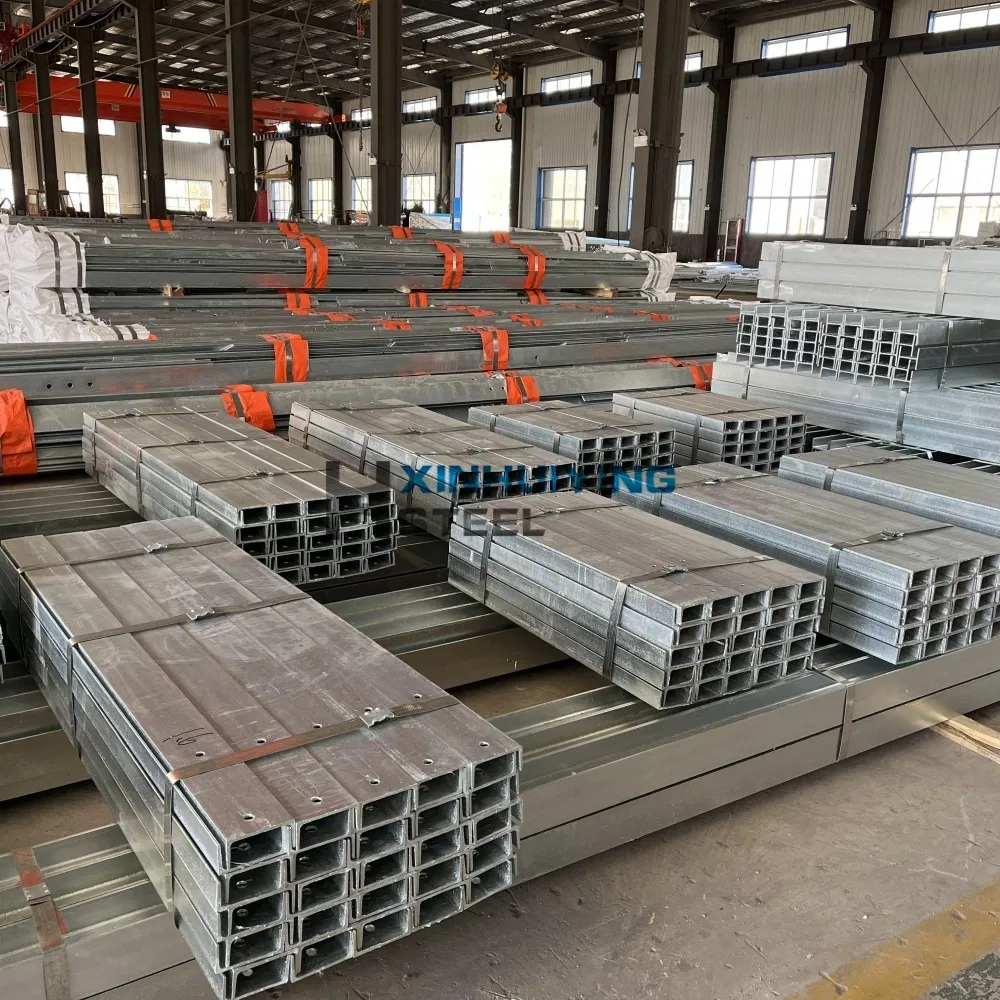

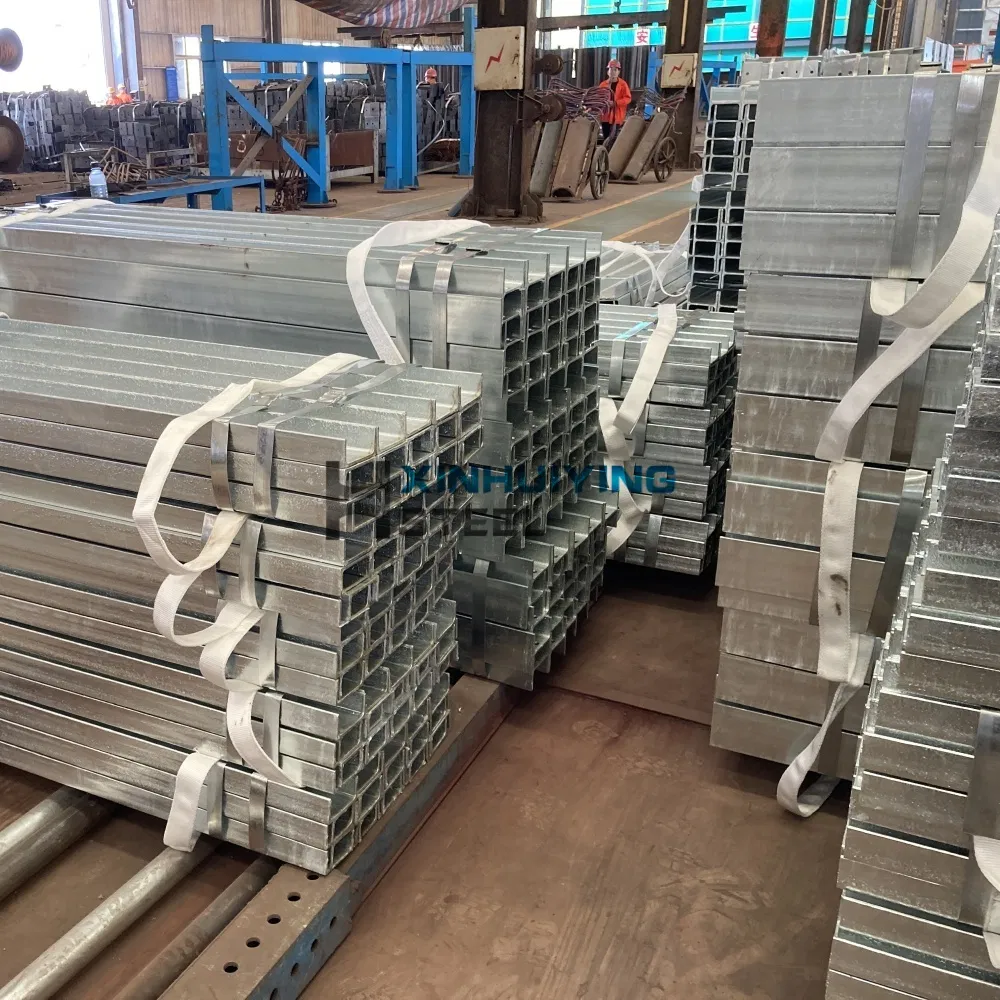

G300/G350 Retaining wall steel C section Steel PFC Channels
Parallel flange channels (PFCs) are versatile structural steel beams. Made from hot-rolled structural steel, these products feature a distinctive C-shaped cross-section, commonly referred to as C channel beams or C sections.
PFCs serve as vital load-bearing elements in construction and engineering. Their unique cross-sectional design allows them to support significant weight without distortion, making them robust and suitable for various heavy-duty applications.
| Type | Specifications (mm) | Weight (kg/m) |
|---|---|---|
| PFC75*40 | 75*40*3.8*6.1 | 5.9 |
| PFC100*50 | 100*50*4.2*6.7 | 8.31 |
| PFC125*65 | 125*65*4.7*7.5 | 11.9 |
| PFC150*75 | 150*75*6*9.5 | 17.7 |
| PFC200*75 | 200*75*6*12 | 22.9 |
| PFC230*75 | 230*75*6.5*12 | 25.1 |
| PFC250*90 | 250*90*8*15 | 35.5 |
| PFC300*90 | 300*90*8*16 | 40.1 |
| PFC380*100 | 380*100*10*17.5 | 55.2 |

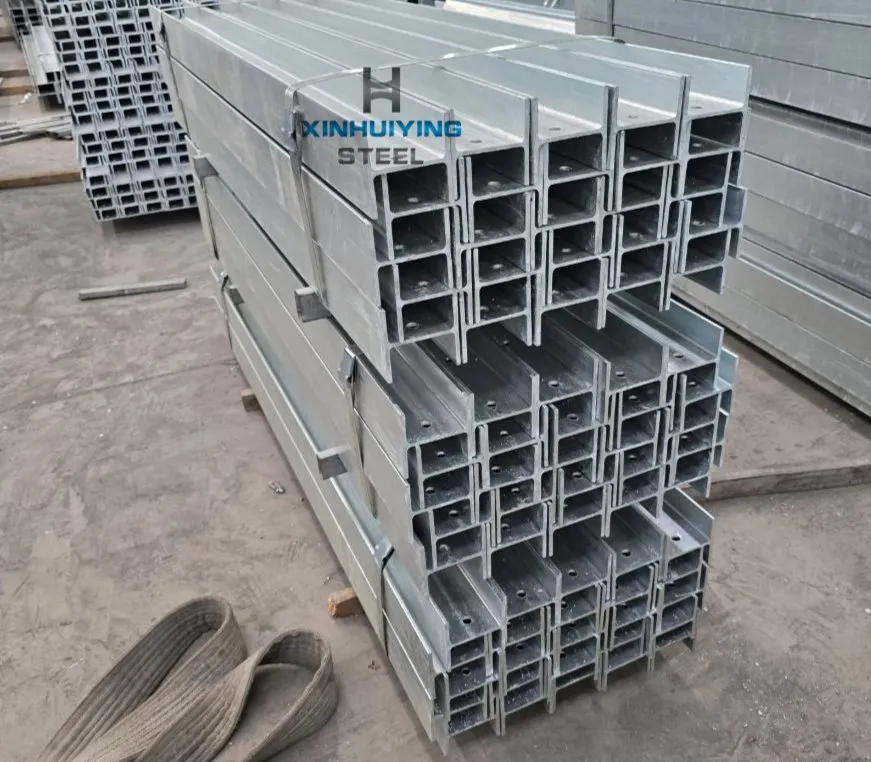

Galvanized Steel H post / H Beam
Ideal for straight middle panels of structural retaining walls. Compatible with concrete or timber sleepers for long-lasting stability.

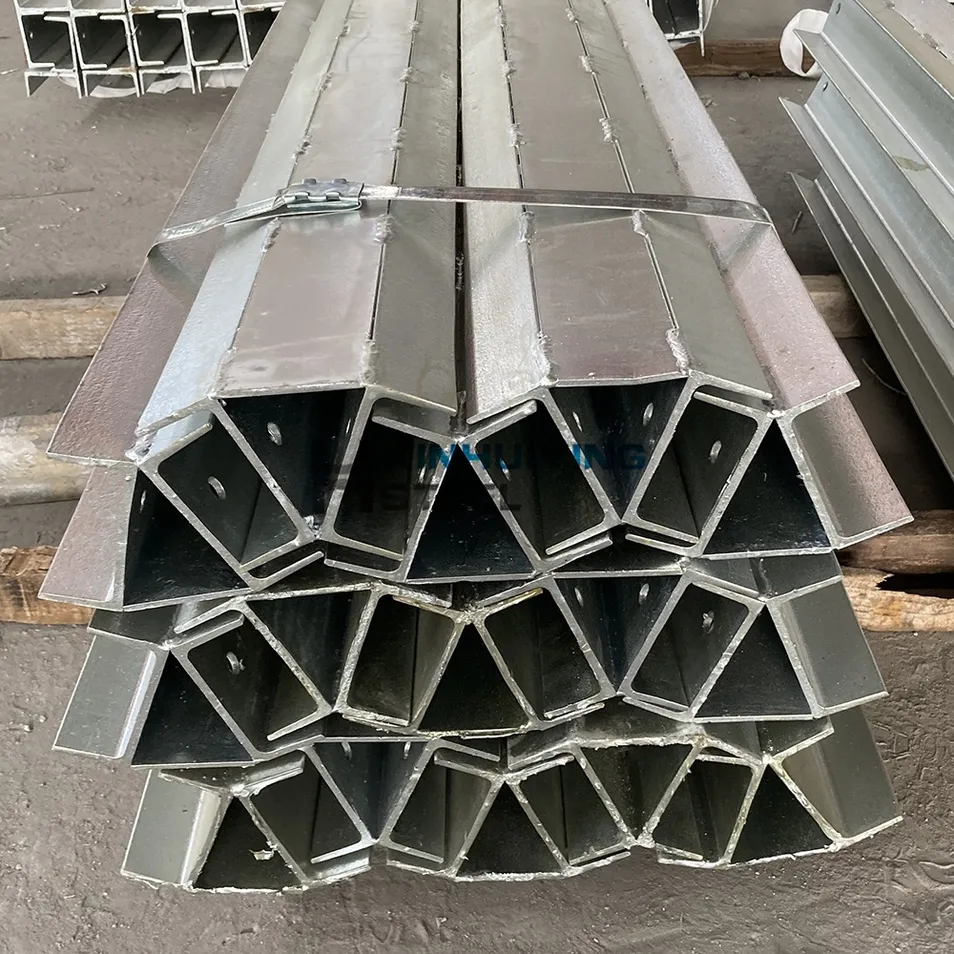

45 Degree Corner Channel Posts
Manufactured by welding two PFC posts. Perfect for gentle deviations and custom angles in sleeper retaining wall construction.

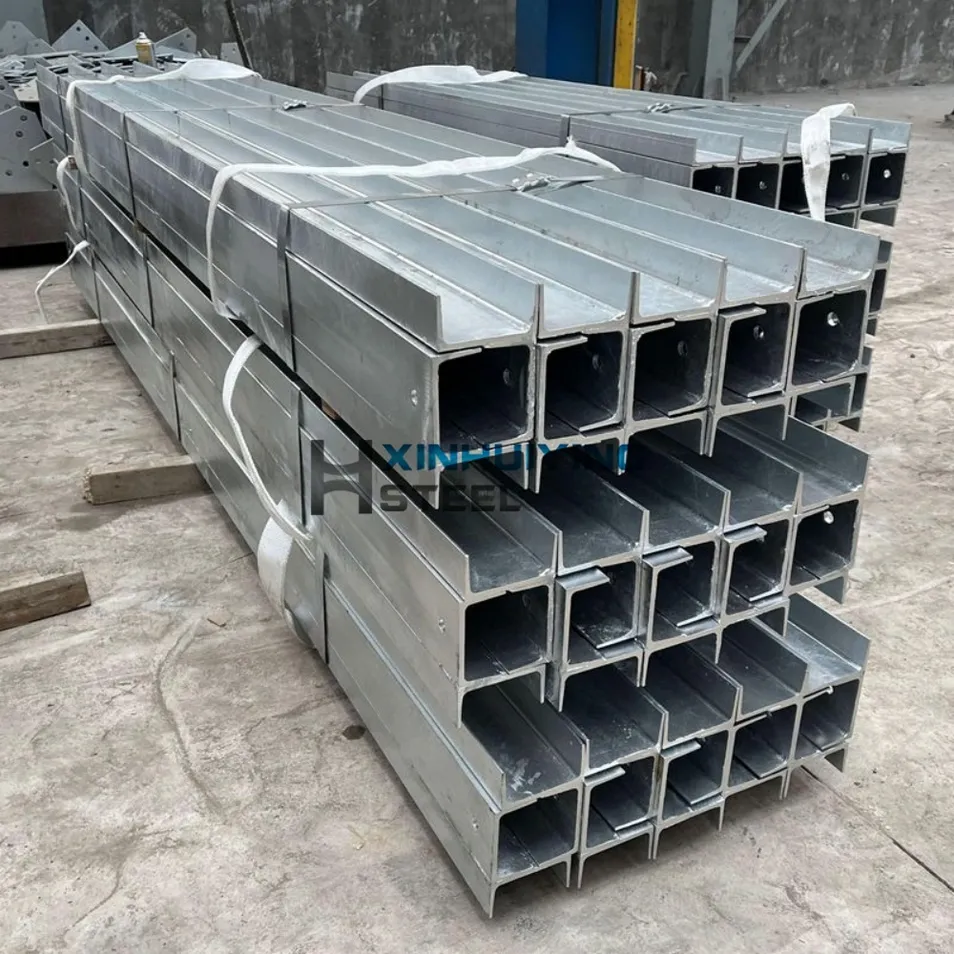

90 Degree Corner Joiner Steel Posts
Designed for heavy-duty 90° corners. High-strength construction ensures the structural integrity of retaining wall corners.

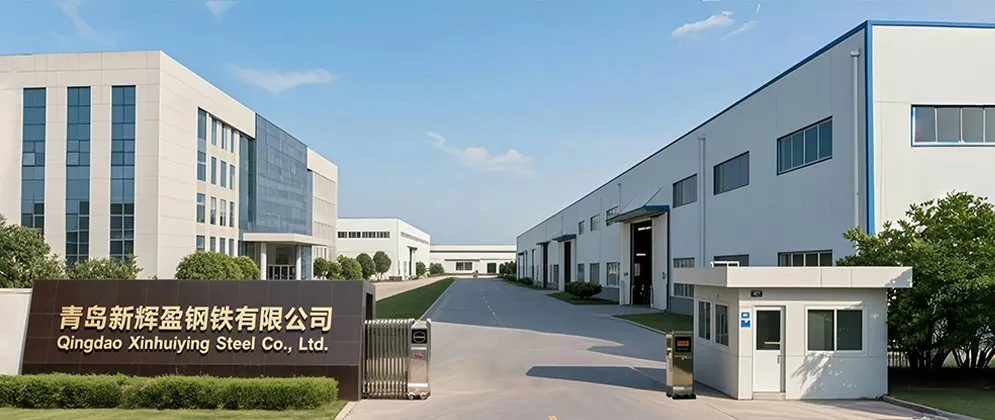

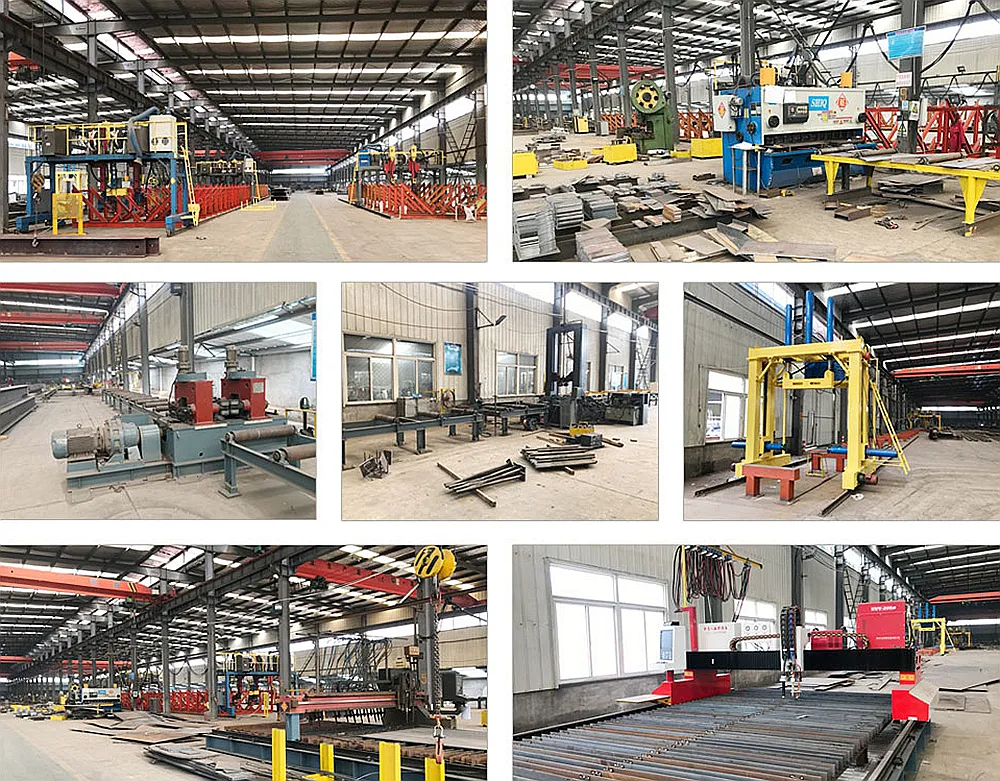

Our facility covers 20,000 square meters, equipped with modern production lines and precision CNC machinery. We specialize in steel structural fabrications, metal sheet processing, and galvanized steel sections. Our "one-stop material purchase" mode ensures efficiency and guaranteed production cycles.
