BLS Structural Steel
BLS Structural Steel

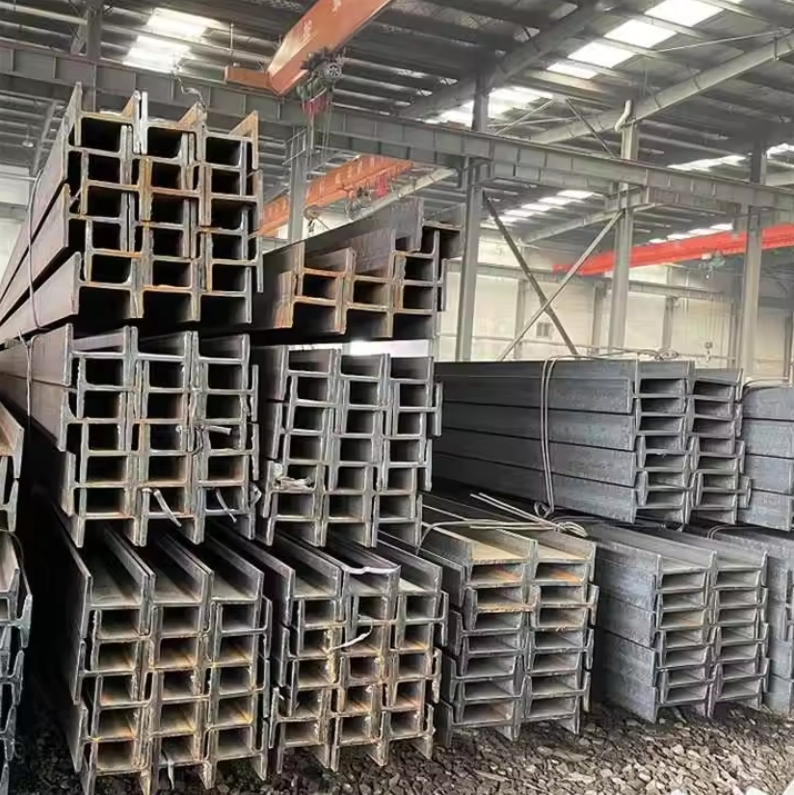

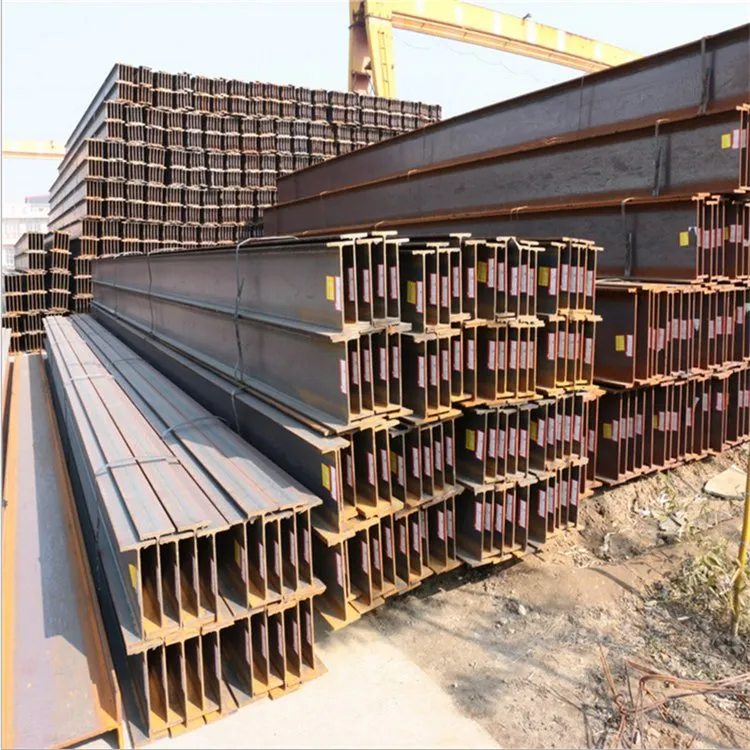

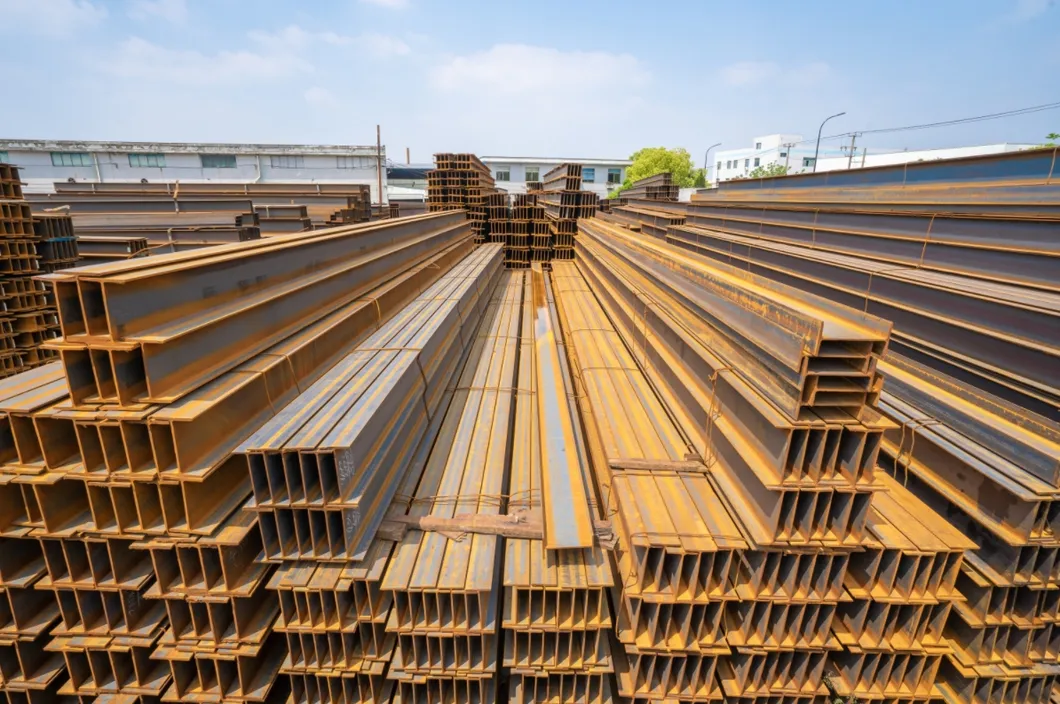

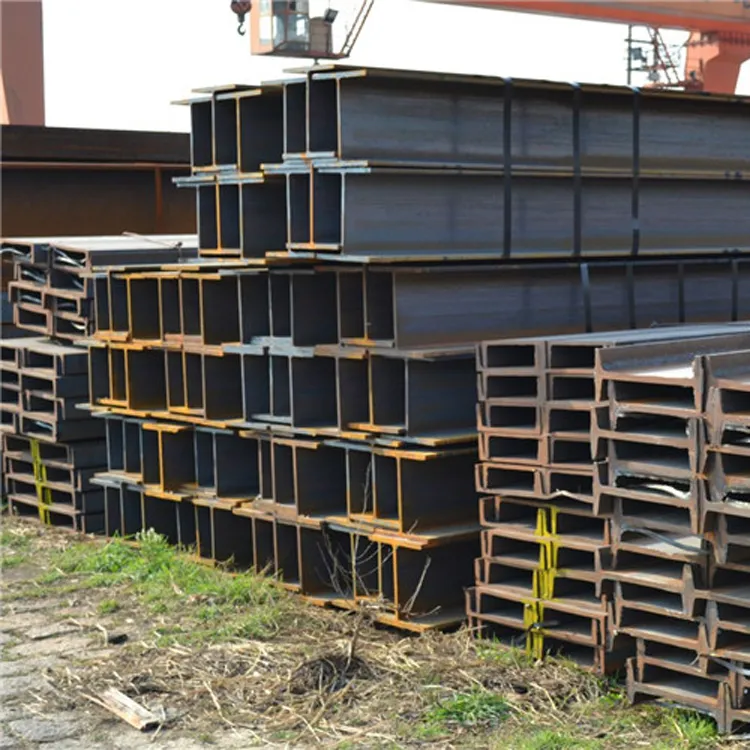

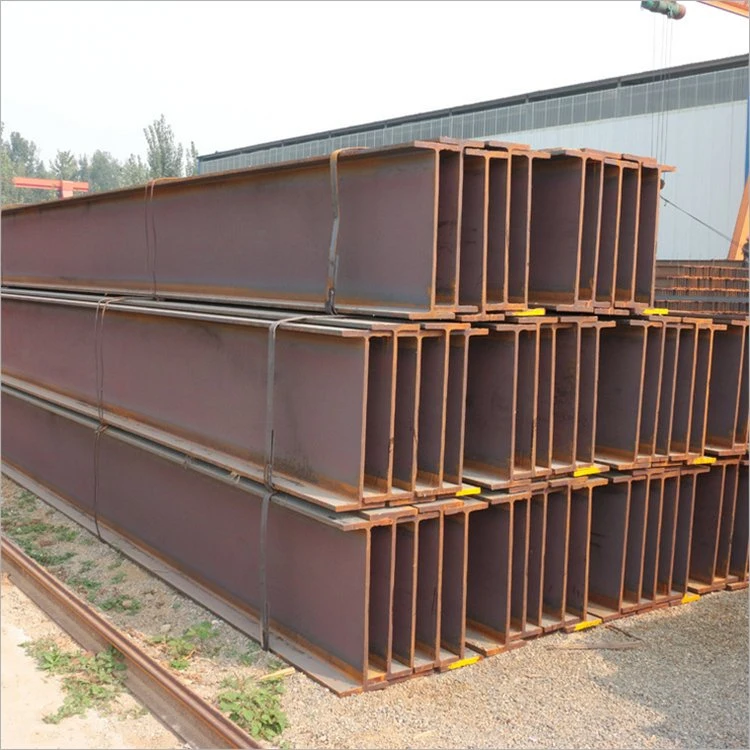

H-beam is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named after its section is the same as the English letter "H". Since all parts of H-beam are arranged at right angles, H-beam has the advantages of strong bending resistance, simple construction, cost saving and light weight in all directions.
| Parameter | Details |
|---|---|
| Product Name | H-beam |
| Grade | Q235B SM490 SS400 Q345B G300 G350 S275JR S355JR |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Technique | Hot rolled/Cold rolled |
| Application | Civil and Industrial Building Structures |
| Delivery time | About 7- 15 days |
| MOQ | 5 TONS |
| Size (MM) h*b*tw*t | Weight (KG/M) | Size (MM) h*b*tw*t | Weight (KG/M) |
|---|---|---|---|
| 100*50*5*7 | 9.54 | 300*150*6.5*9 | 37.3 |
| 100*100*6*8 | 17.2 | 294*302*12*12 | 85.0 |
| 125*60*6*8 | 13.3 | 300*300*10*15 | 94.5 |
| 150*150*7*10 | 31.9 | 344*354*16*16 | 131.0 |
| 200*200*8*12 | 50.5 | 400*400*13*21 | 172.0 |
| 250*250*9*14 | 72.4 | 414*405*18*28 | 233.0 |

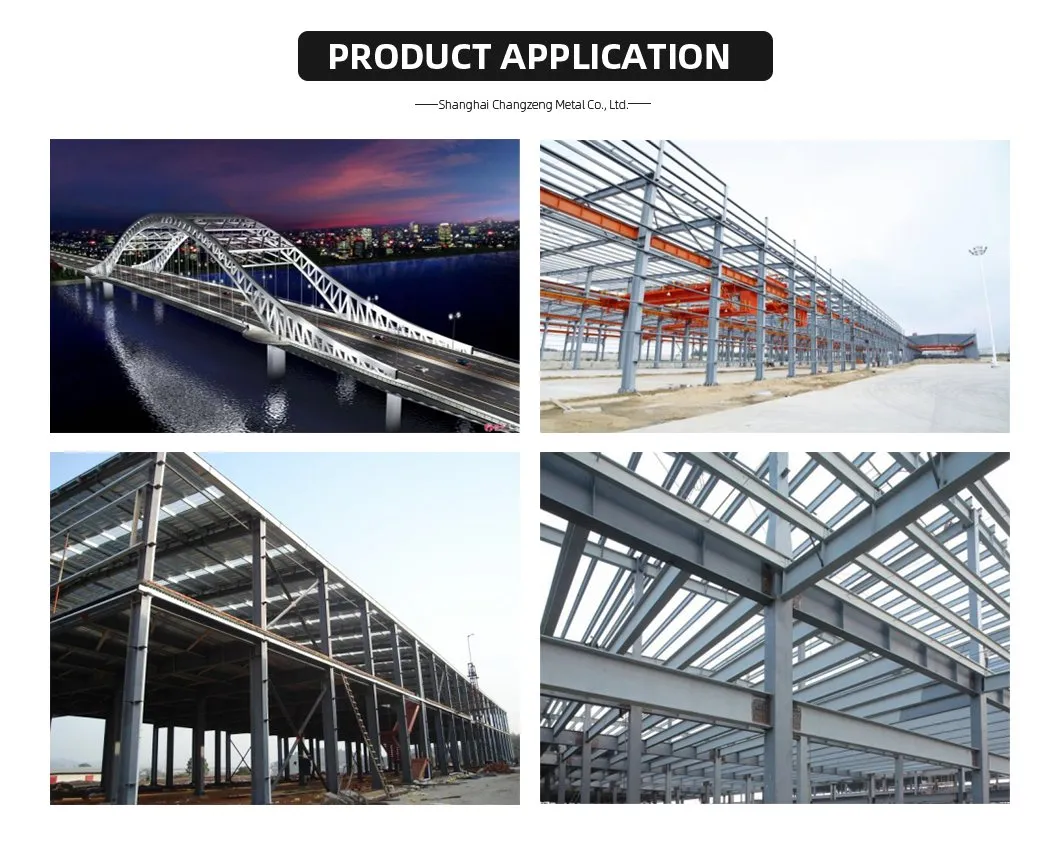

H-beam is mainly divided into ordinary I-steel light I-steel and wide flange I-steel according to the height ratio of flange and web. Due to its advantages, it is widely used in large-span industrial plants, modern high-rise buildings, and areas with frequent seismic activity.
