Steel Sheet is metal formed by an industrial process into thin, flat pieces. It is one of the fundamental forms used in metalworking and it can be cut and bent into a variety of shapes. Countless everyday objects are constructed with sheet metal. Thicknesses can vary significantly; extremely thin thicknesses are considered foil or leaf, and pieces thicker than 6 mm (0.25 in) are considered plate.
| Item | Details |
|---|---|

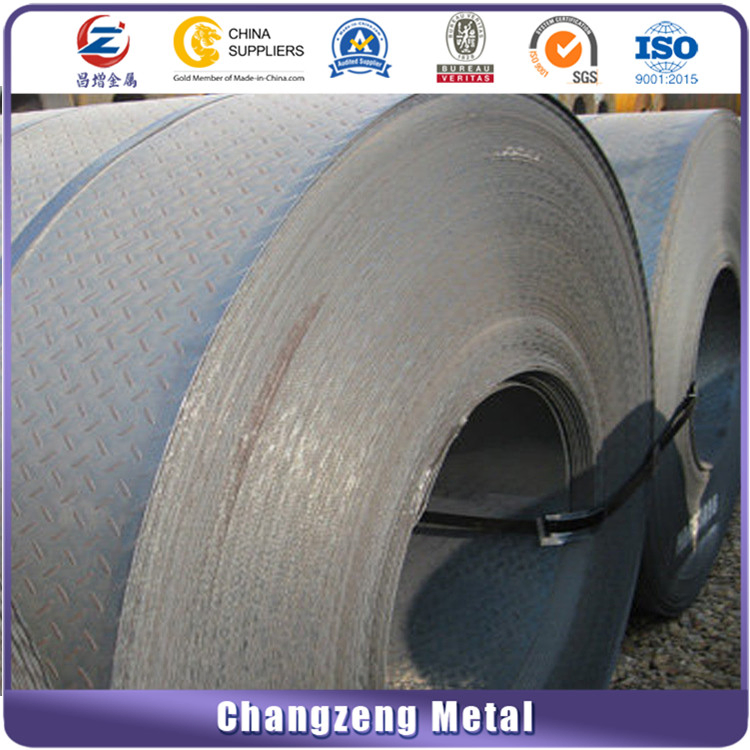

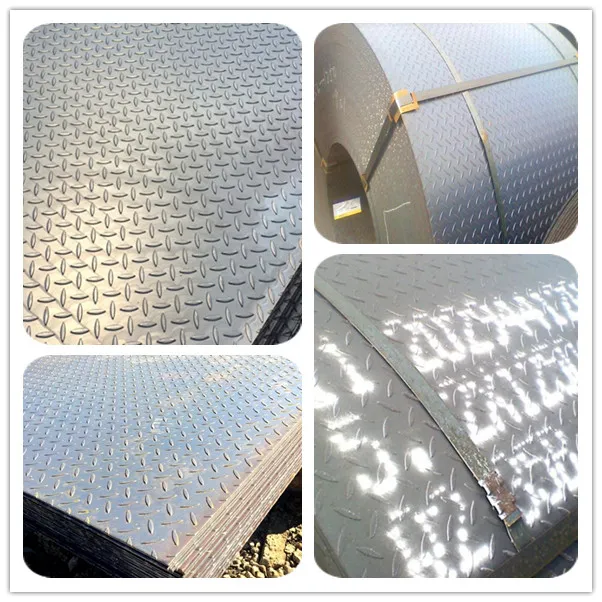

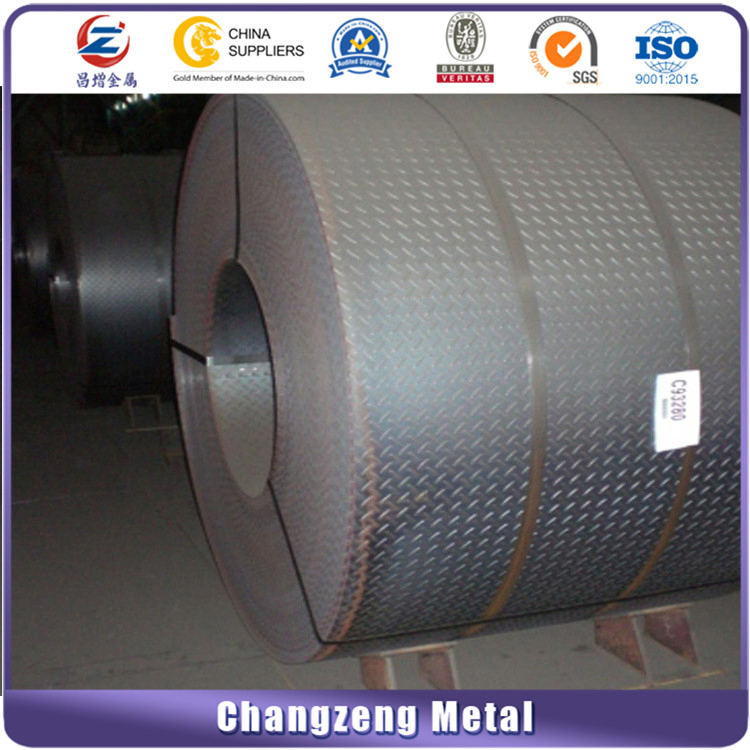

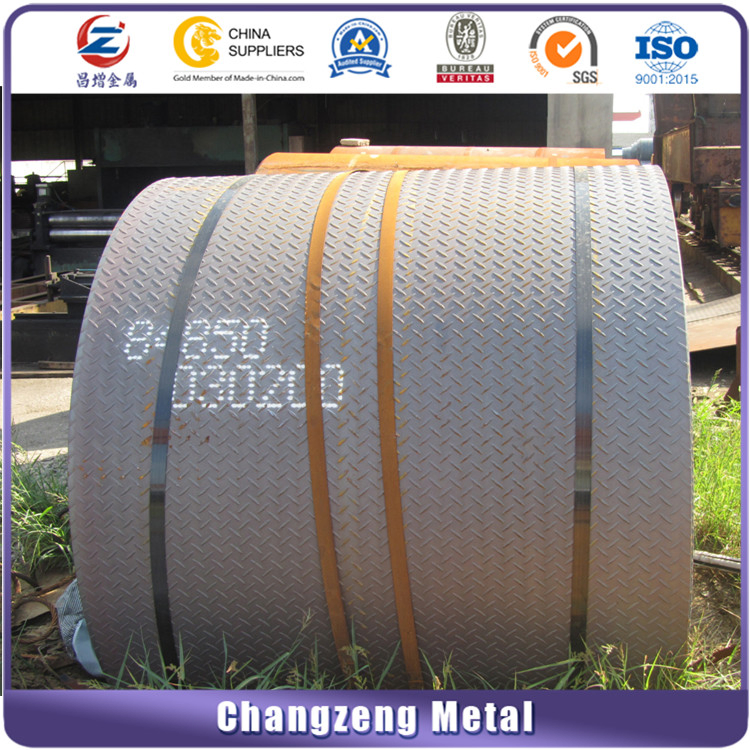

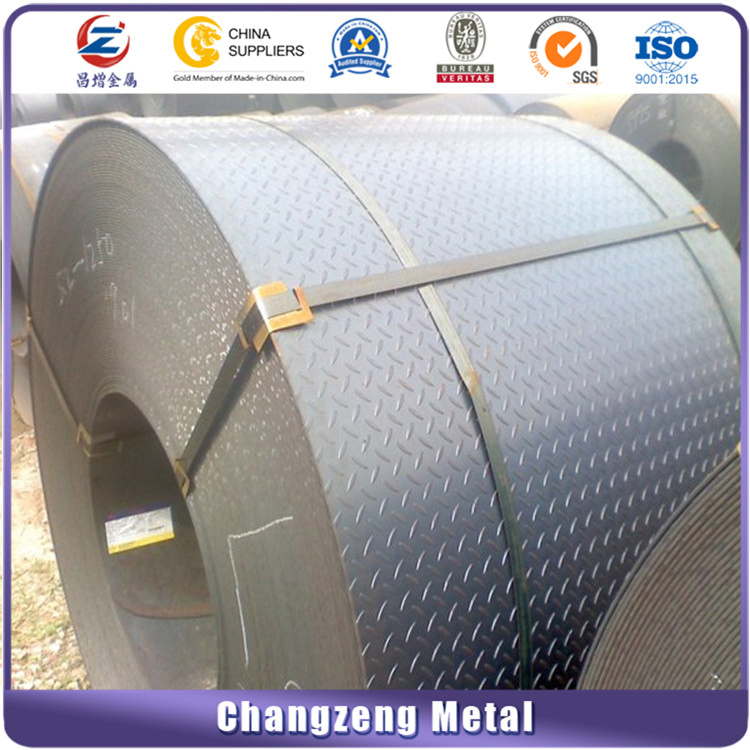

| Product name | Patterned section, Diamond steel plate, Checked plate, Textured steel sheet, Stainless steel diamond plate |
| Material | Q235B, SS400, A36, S235JR, S335JR, Q345 |
| Standard | ASTM, JIS, EN, GB, DIN etc. |
| Application | With the antiskid and decorative character, diamond steel plate is extensive used in shipbuilding, boiler, automobile and tractor, the train and architecture industries. |
| Thickness (mm) | Tolerance | Diamond Rhombus (kg/m2) | Hyacinth Bean (kg/m2) | Round Bean (kg/m2) |
|---|---|---|---|---|
| 2.5 | ±0.3 | 21.6 | 21.3 | 21.1 |
| 3.0 | ±0.3 | 25.6 | 24.4 | 24.3 |
| 4.0 | ±0.4 | 33.4 | 32.4 | 32.3 |
| 5.0 | +0.4/-0.5 | 42.3 | 40.5 | 40.2 |
| 6.0 | +0.5/-0.6 | 50.1 | 48.4 | 48.1 |
