BLS Structural Steel
BLS Structural Steel
| Feature | Details |
|---|---|

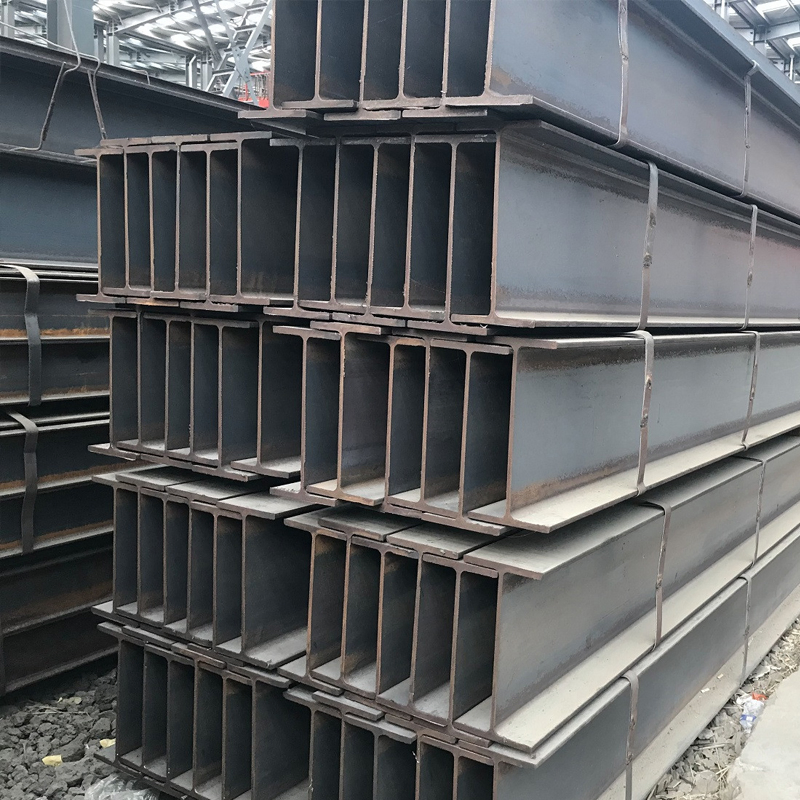

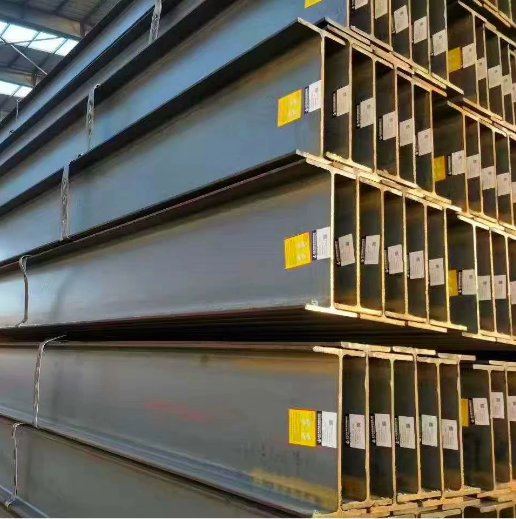

| Product Name | Q345B Structural Carbon Steel H Beams |
| Standard Material | Q235-Q345 / S235JR / ASTM A36 / ST52 |
| Height Range | 100-900mm |
| Width Range | 100-408mm |
| Thickness | Web: 6-21mm | Flange: 8-35mm |
| Length | 6m - 12m |
| Technique | Hot Rolled |

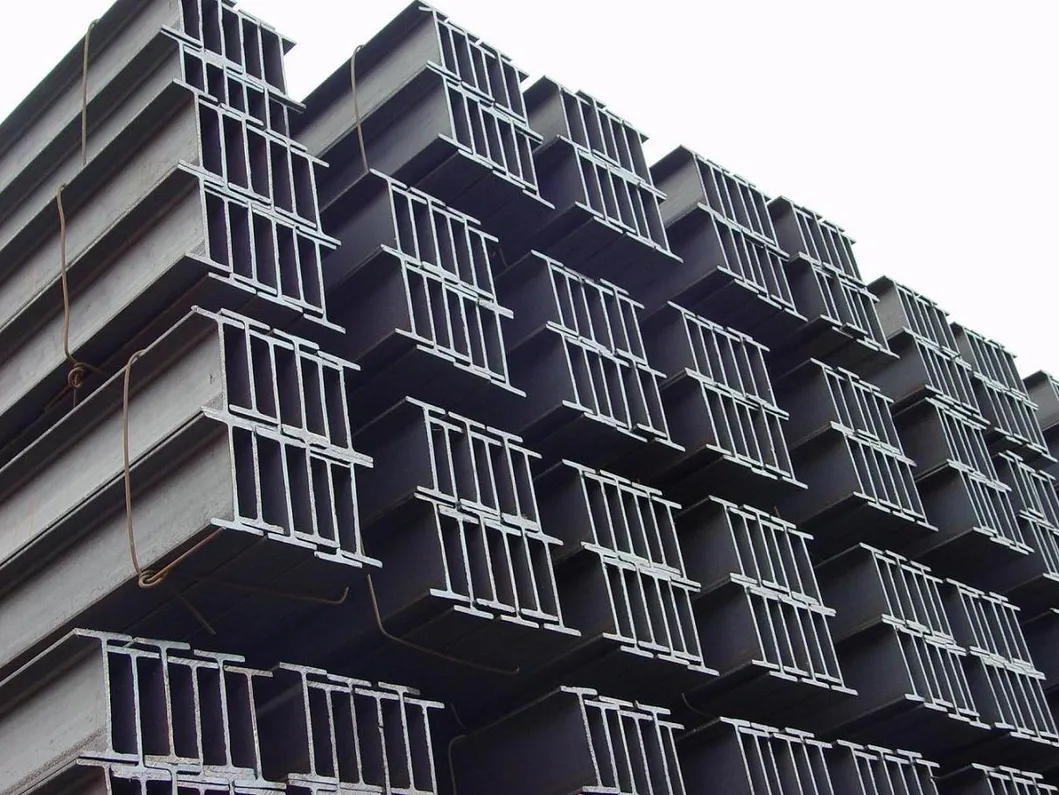

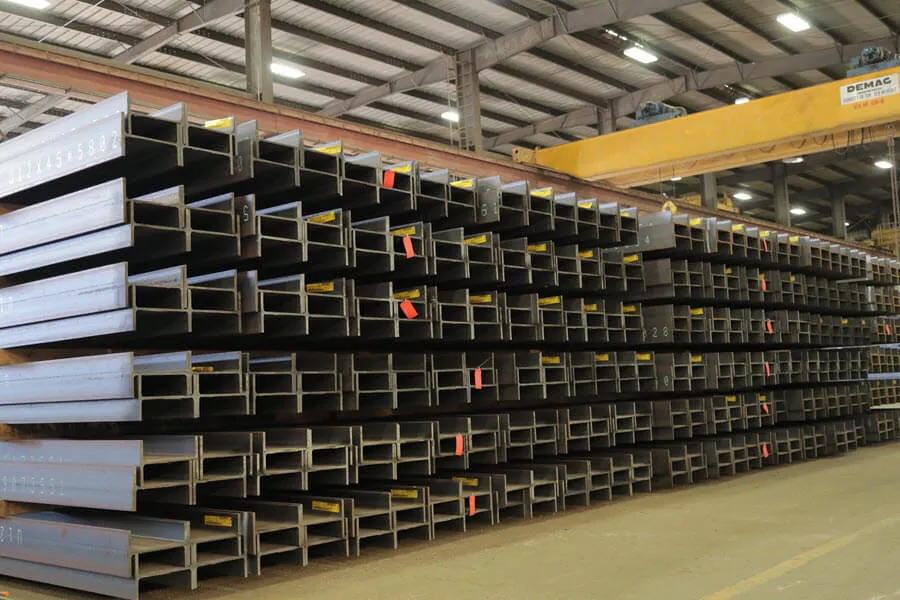

Applications: H beams are essential components in modern construction, widely used in buildings, highways, bridges, railways, tunnels, and the petroleum chemical industry. Their structural efficiency allows for significant time savings during assembly and provides environmental benefits by reducing dust during on-site work.

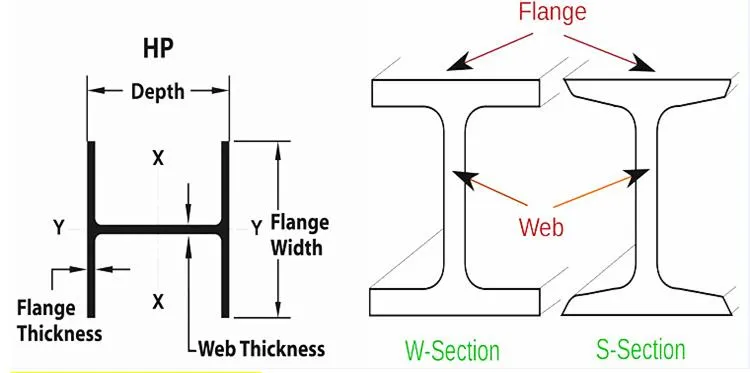

| Size (Height × Breadth) mm | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|
| 100 × 100 | 6 | 8 | 16.9 |
| 150 × 150 | 7 | 10 | 31.1 |
| 200 × 200 | 8 | 12 | 49.9 |
| 300 × 300 | 10 | 15 | 93.0 |
| 400 × 400 | 13 | 21 | 171.7 |
| 500 × 200 | 10 | 16 | 88.1 |
| 700 × 300 | 13 | 24 | 181.8 |
| 900 × 300 | 16 | 28 | 240.1 |
Our products are sourced from large-scale domestic steel manufacturers, ensuring top-tier raw materials. With advanced laser cutting, surface treatment, and deep processing capabilities, we maintain a consistent stock of over 20,000 tons to meet urgent project requirements.
