BLS Structural Steel
BLS Structural Steel

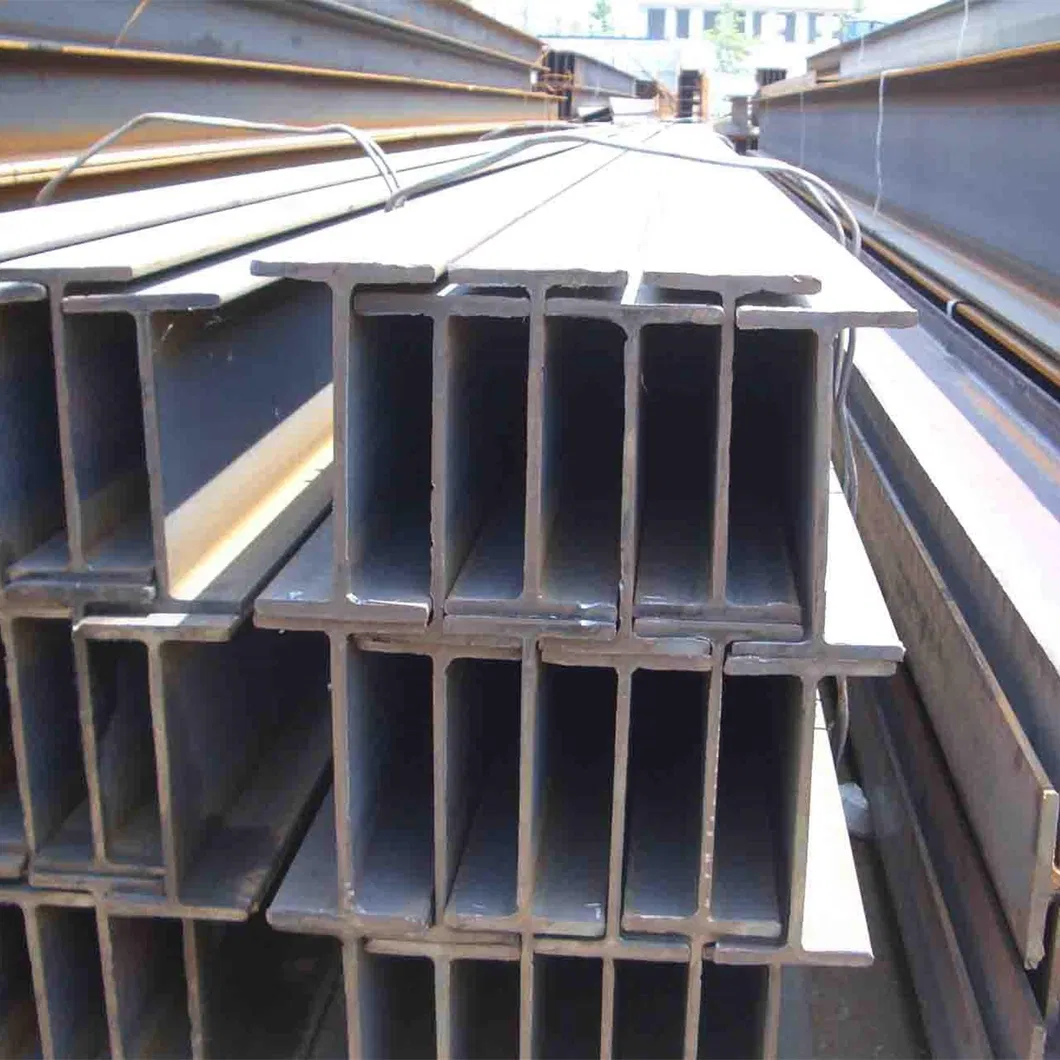

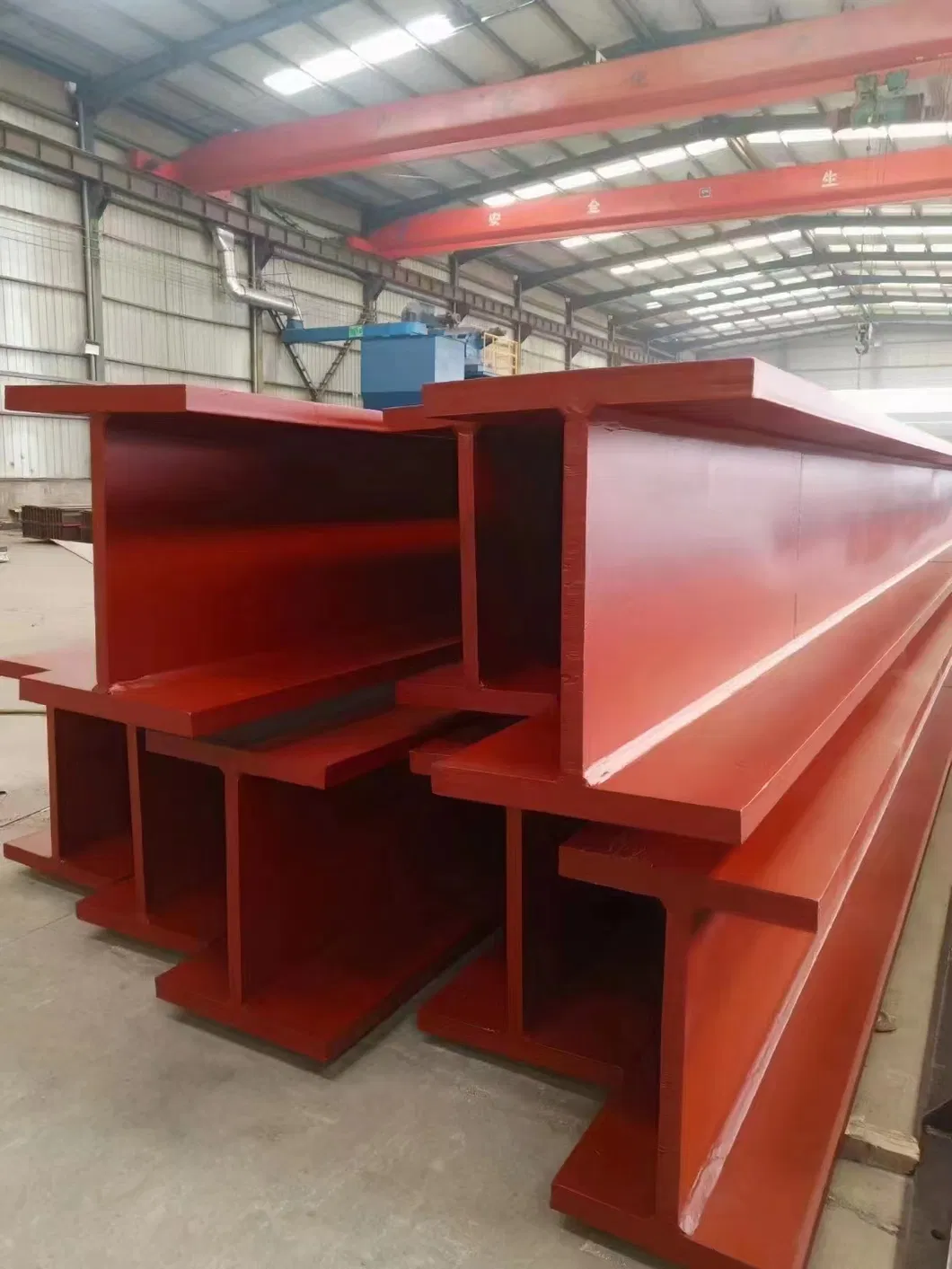

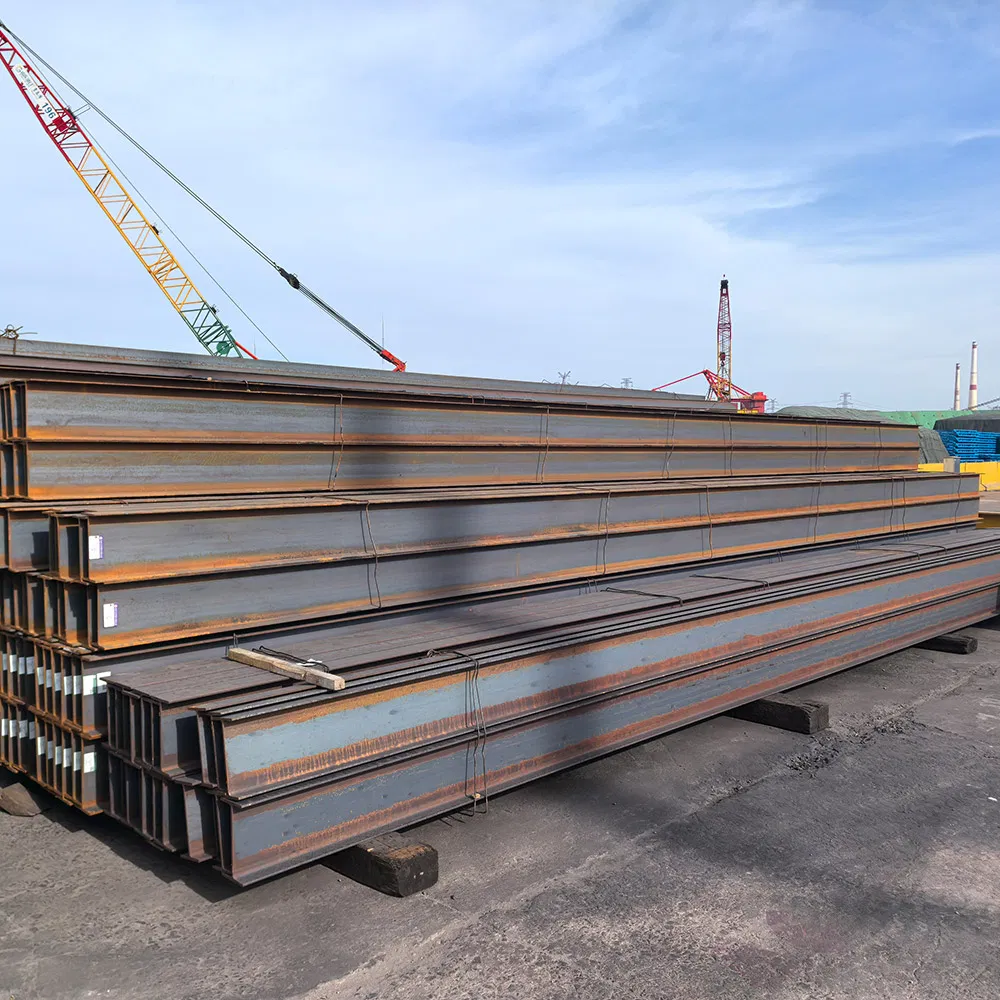

H-beam steel is an economical and efficient profile with more optimized section area distribution and more reasonable strength to weight ratio, so it is named because its section is the same as the English letter "H". Because all parts of H beam are arranged at right angles, H beam has been widely used for its advantages of strong bending resistance, simple construction, cost saving and light structural weight in all directions.

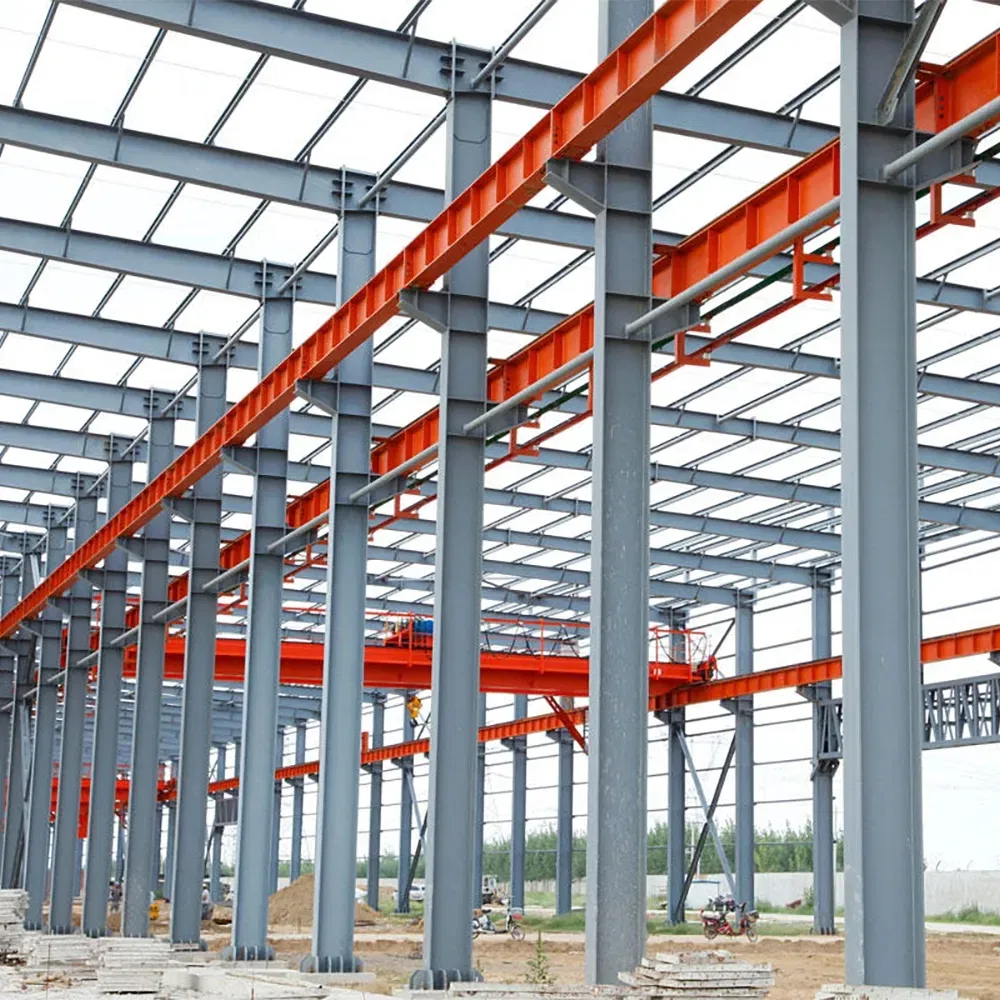

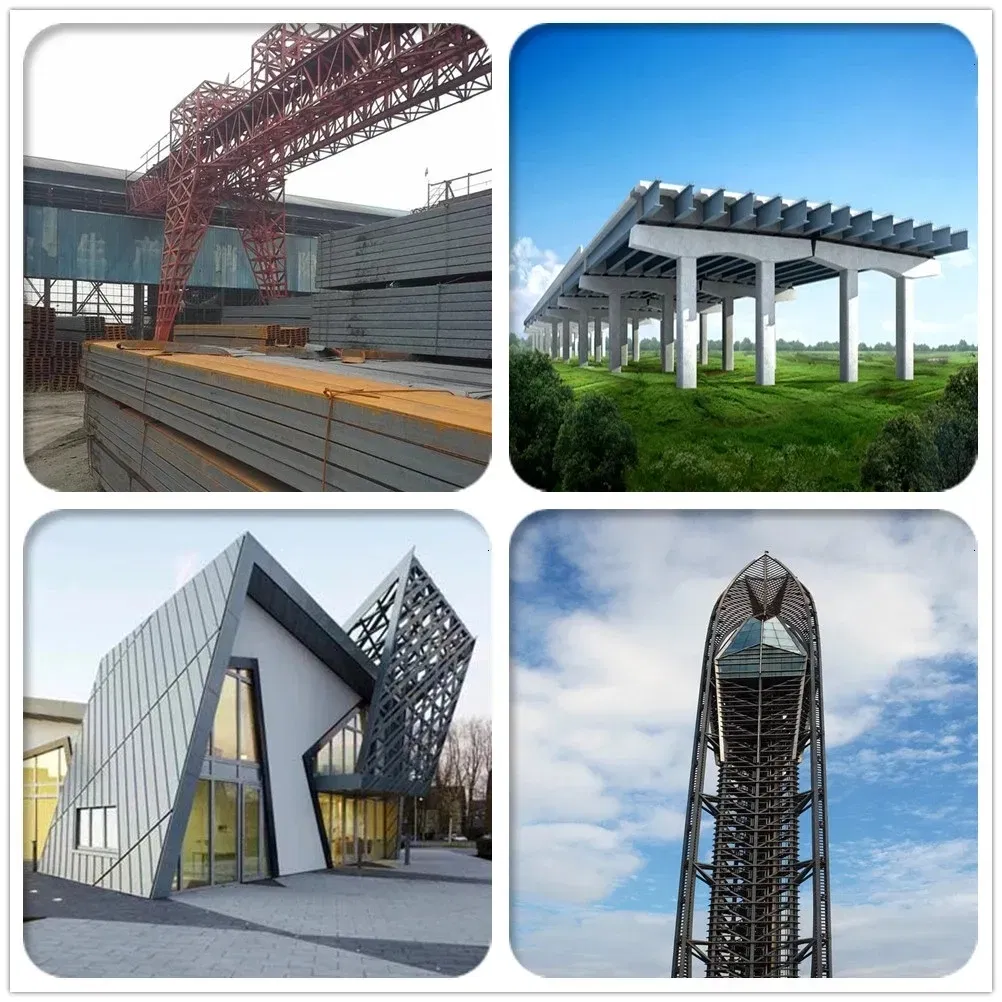

H beam is widely used in various building structure and engineering structure:

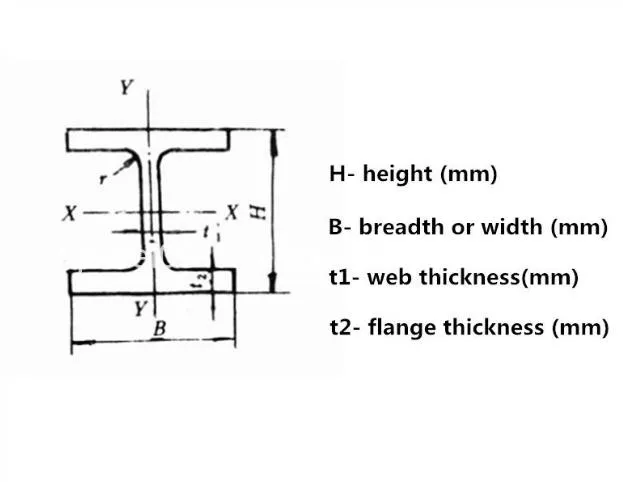

| Nominal Size (mm) | HXB (mm) | T1 (mm) | T2 (mm) | Unit Weight (kg/m) |
|---|---|---|---|---|
| 100*100 | 100*100 | 6 | 8 | 16.9 |
| 120*120 | 125*125 | 6.5 | 9 | 23.6 |
| 150*75 | 150*75 | 5 | 7 | 14 |
| 150*150 | 150*150 | 7 | 10 | 31.1 |
| 200*100 | 200*100 | 5.5 | 8 | 20.9 |
| 200*200 | 200*200 | 8 | 12 | 49.9 |
| 300*150 | 300*150 | 6.5 | 9 | 36.7 |
| 400*200 | 400*200 | 8 | 13 | 65.4 |
| 500*200 | 500*200 | 10 | 16 | 88.2 |
| 600*300 | 594*302 | 14 | 23 | 170 |
