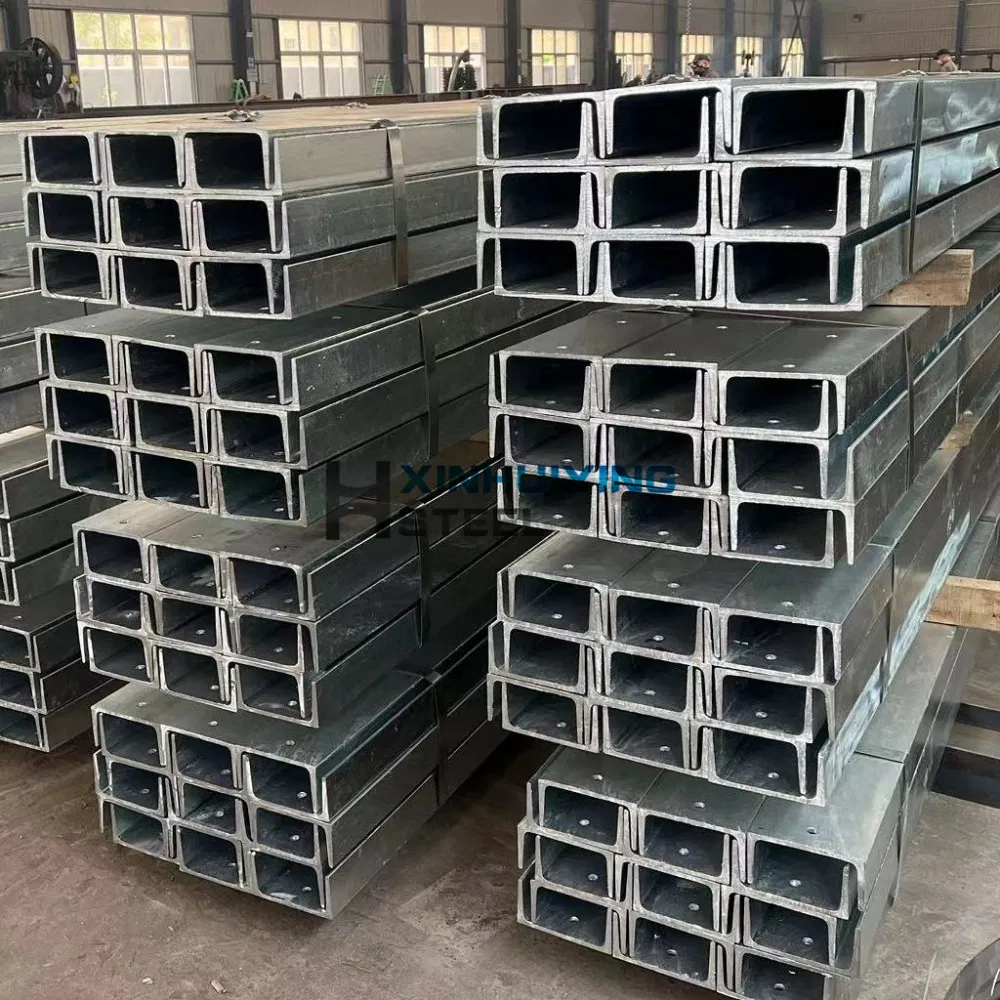

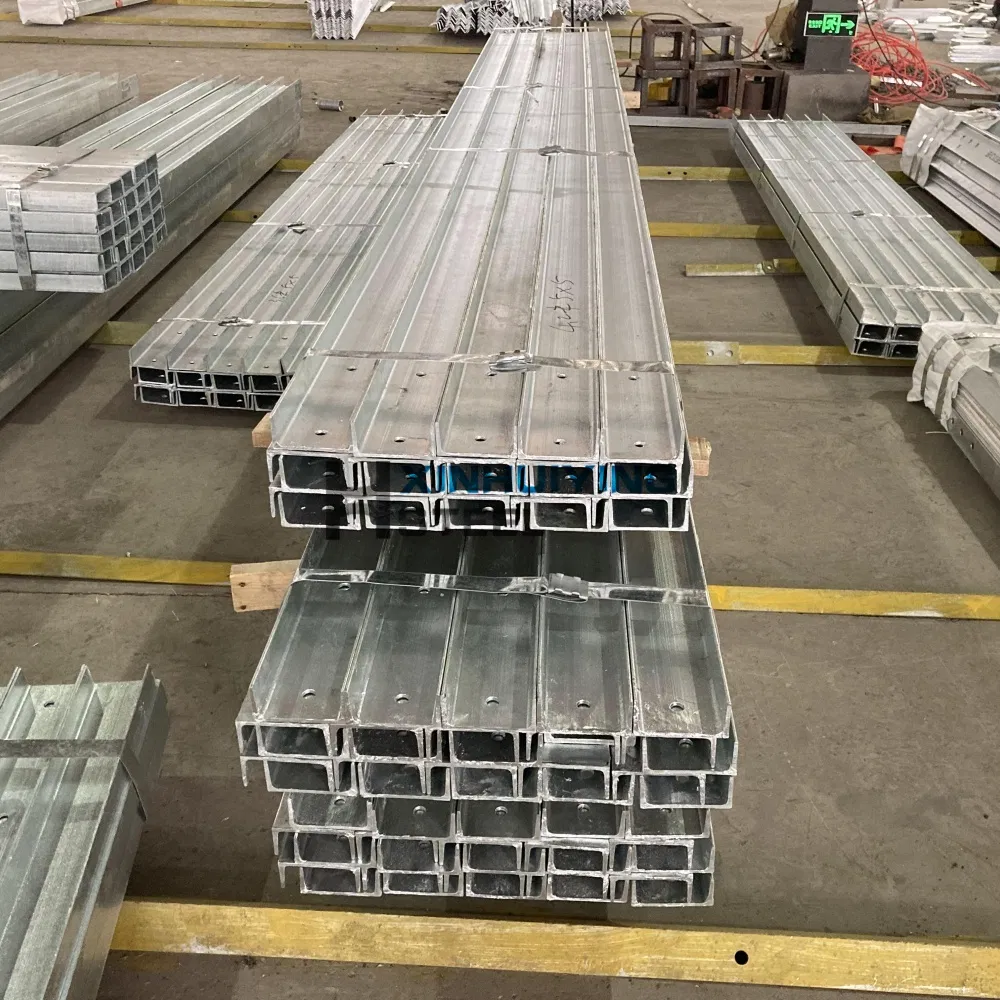

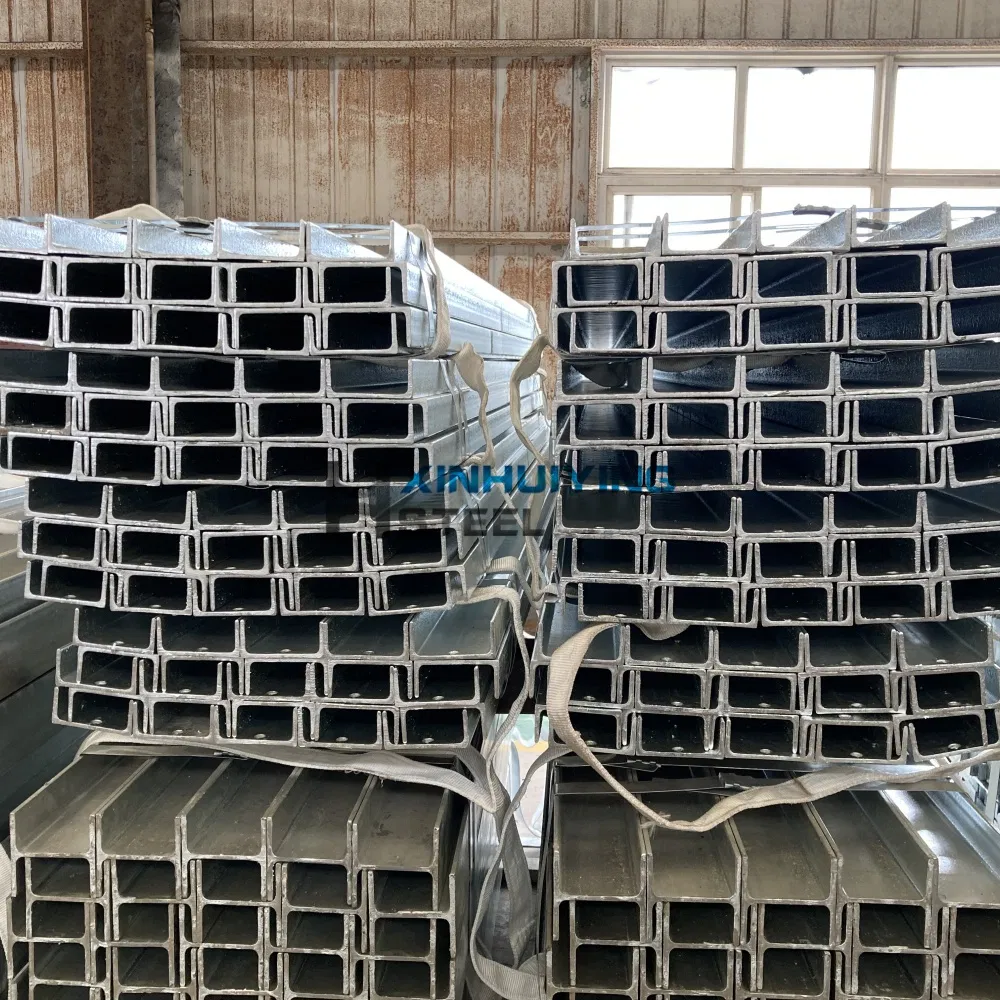

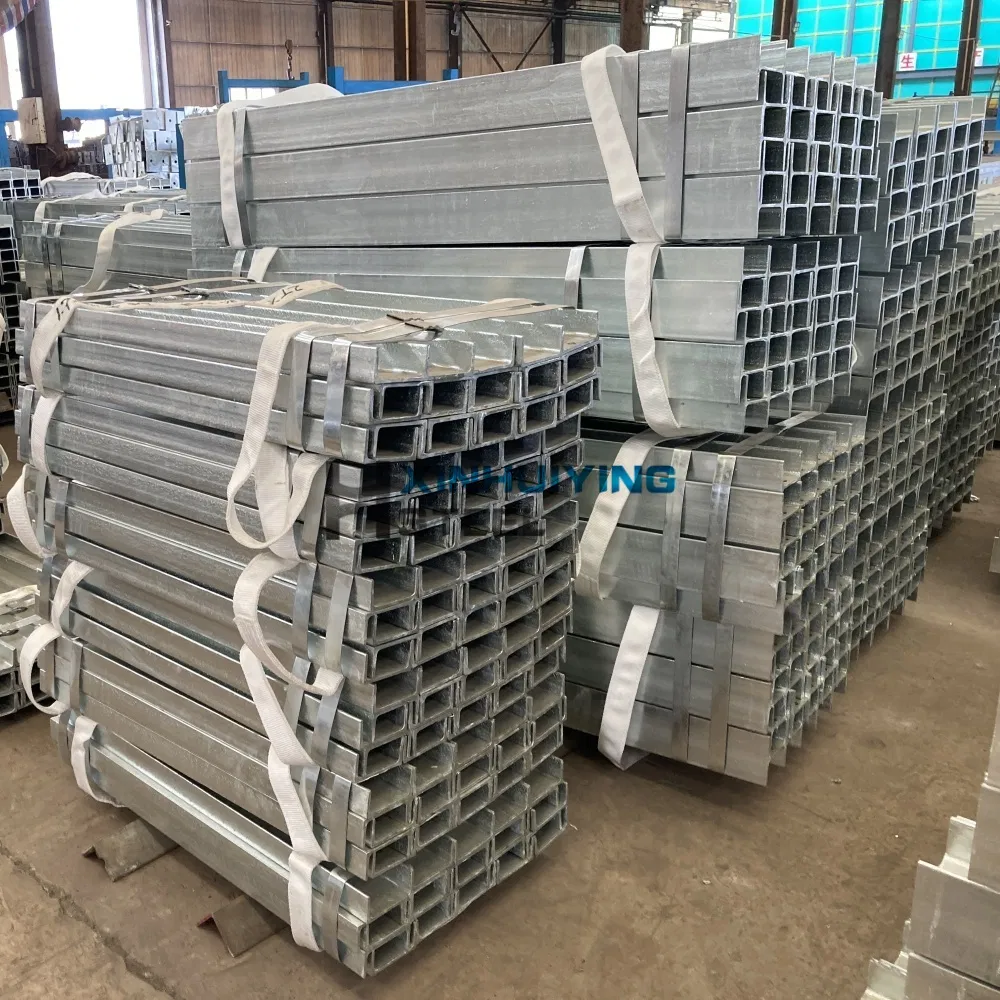

Timber Retaining Wall Steel Channel Hot Rolled Galvanized Steel C Section

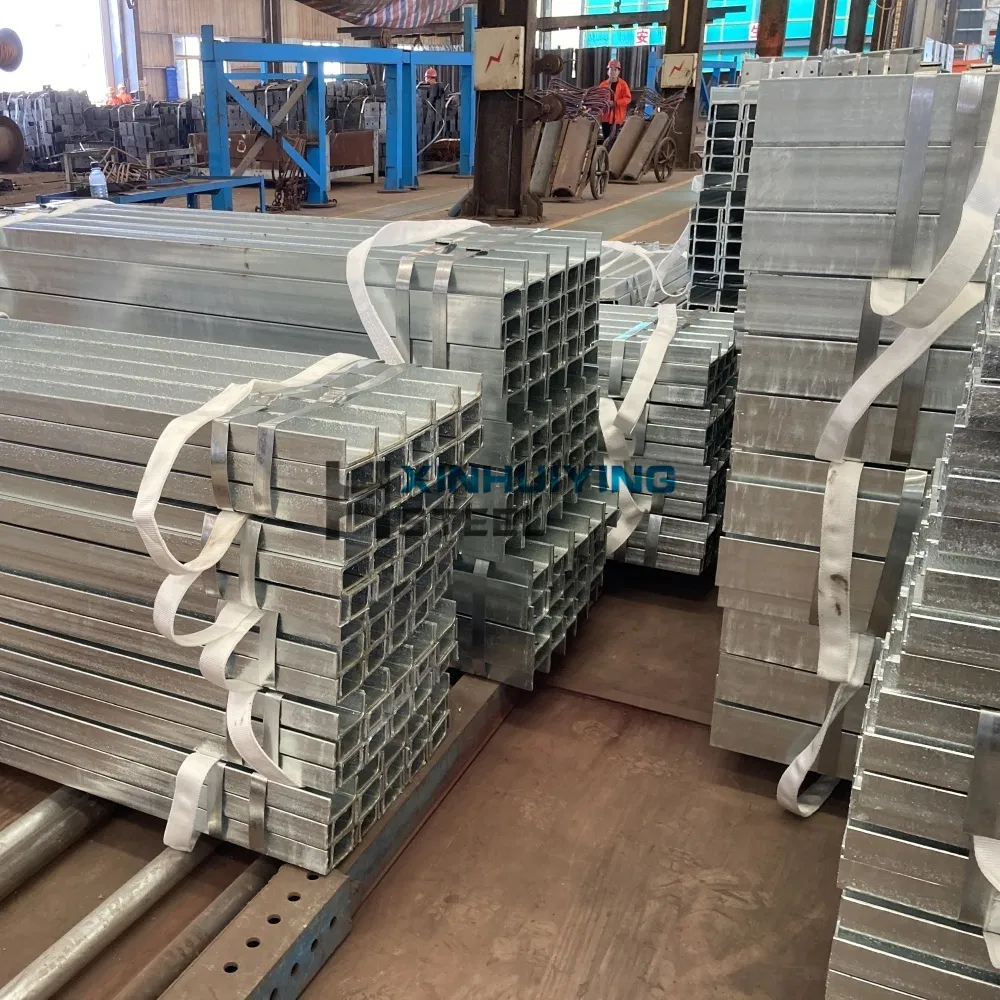

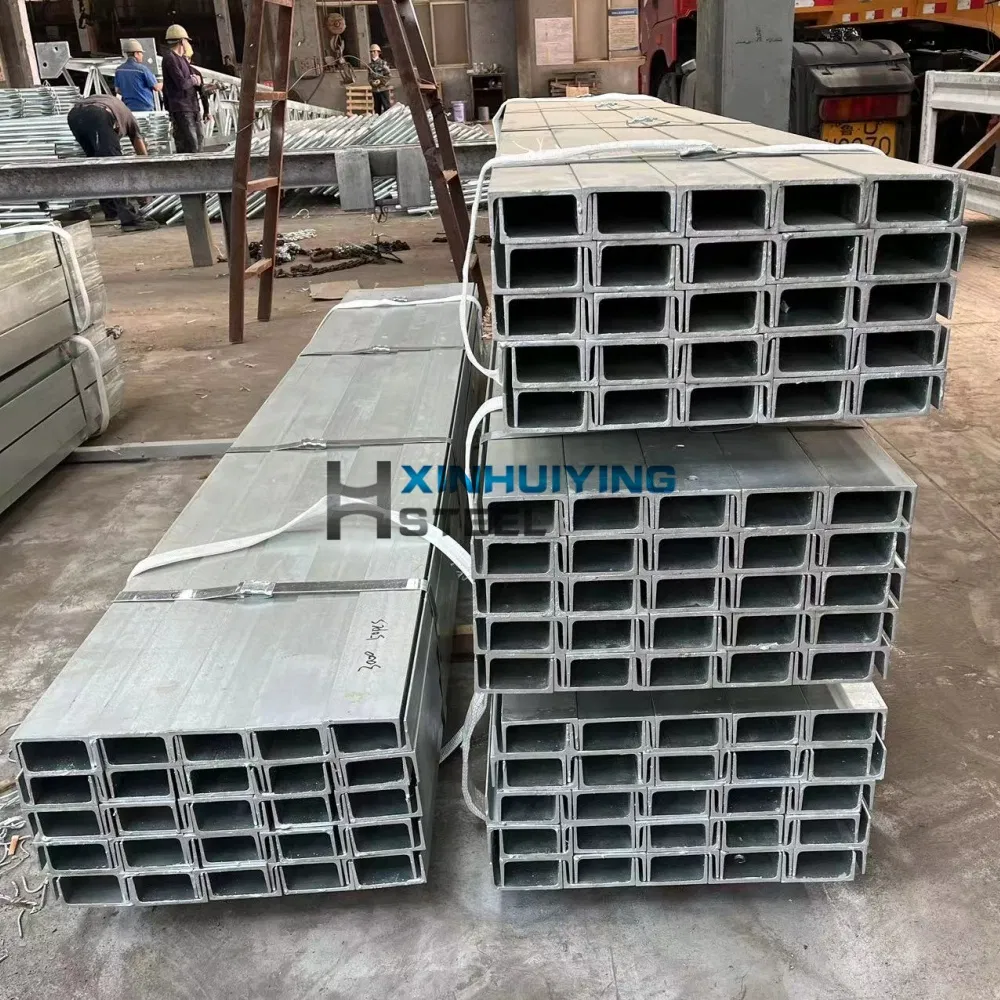

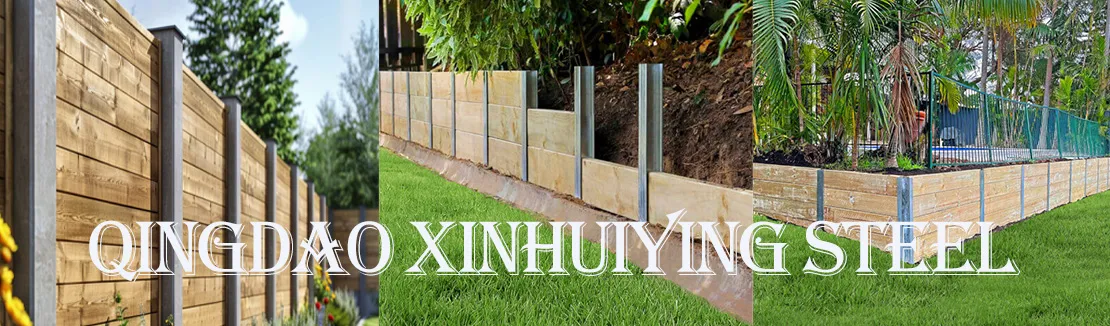

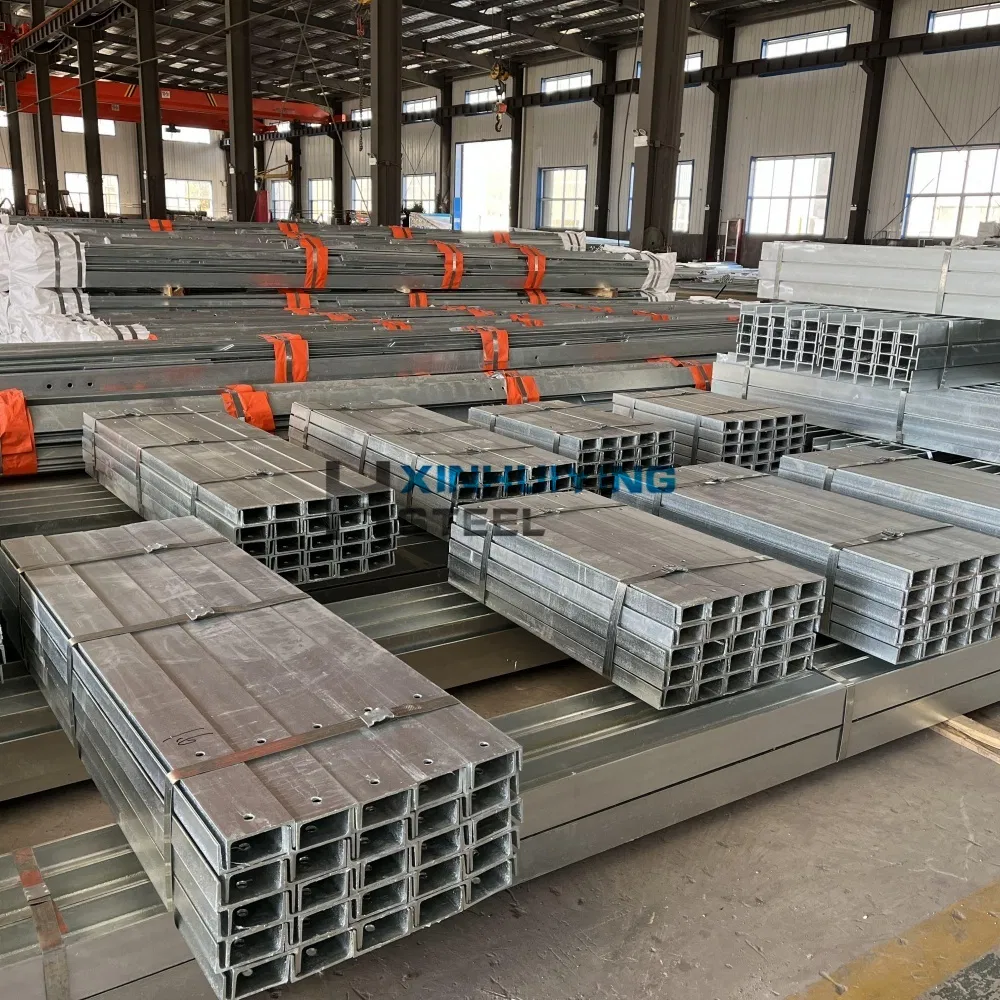

Our C Channel steel posts are manufactured from high-quality hot-rolled galvanised steel, engineered specifically for robust performance in retaining wall and landscaping applications. These posts offer superior protection against weather, fire, and corrosion.
Hot-dipped galvanizing provides long-lasting protection against environmental factors, ensuring structural stability over decades.
Unlike timber, this steel section won't rot, warp, or be affected by termites. It is a maintenance-free solution.
Manufactured to meet strict Australian standards for maximum reliability in construction.
Standard: AS/NZS3679.1:2010
| Type | Specifications (mm) | Weight (kg/m) |
|---|---|---|
| PFC75*40 | 75*40*3.8*6.1 | 5.9 |
| PFC100*50 | 100*50*4.2*6.7 | 8.31 |
| PFC125*65 | 125*65*4.7*7.5 | 11.9 |
| PFC150*75 | 150*75*6*9.5 | 17.7 |
| PFC200*75 | 200*75*6*12 | 22.9 |
| PFC250*90 | 250*90*8*15 | 35.5 |
| PFC300*90 | 300*90*8*16 | 40.1 |

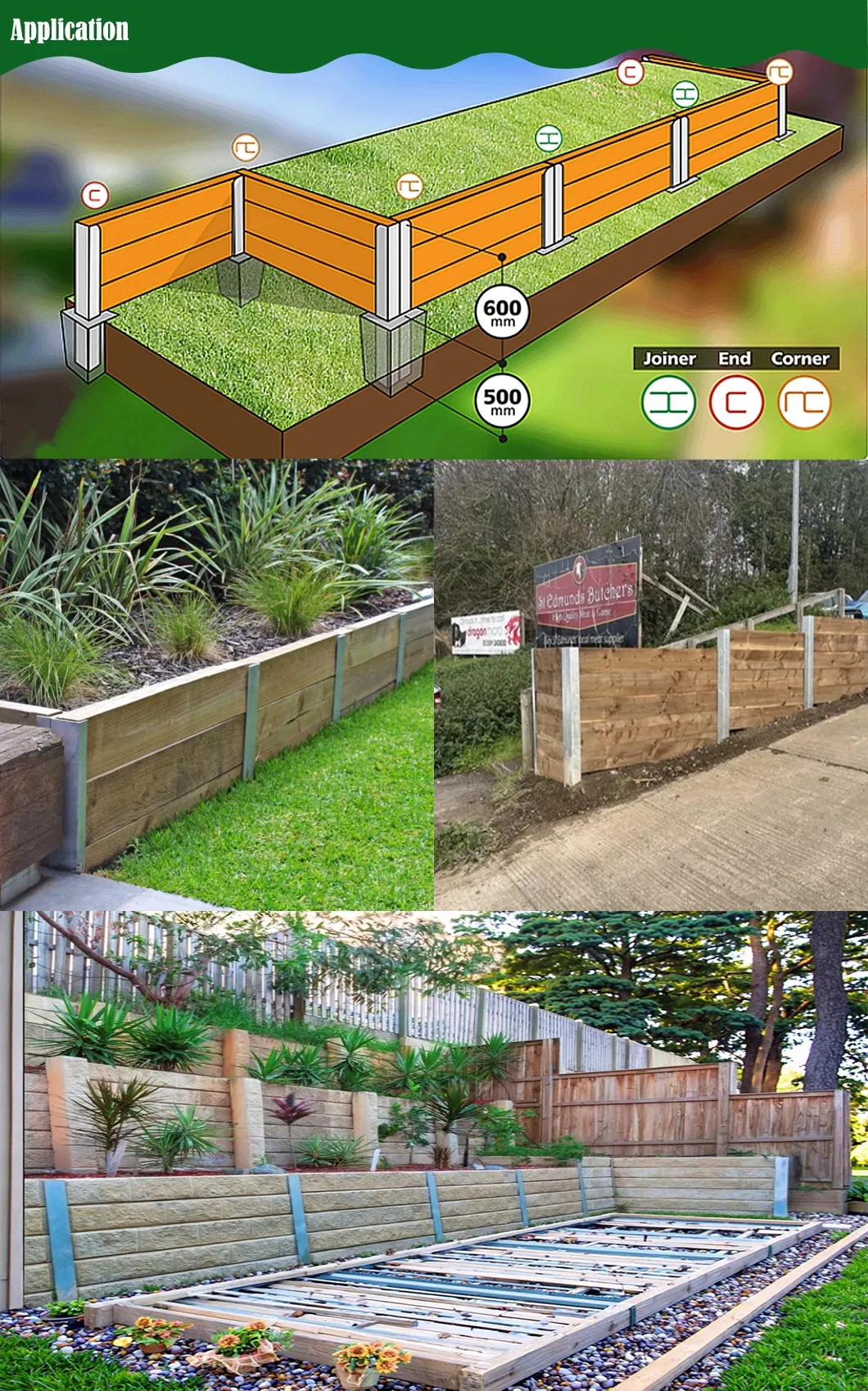

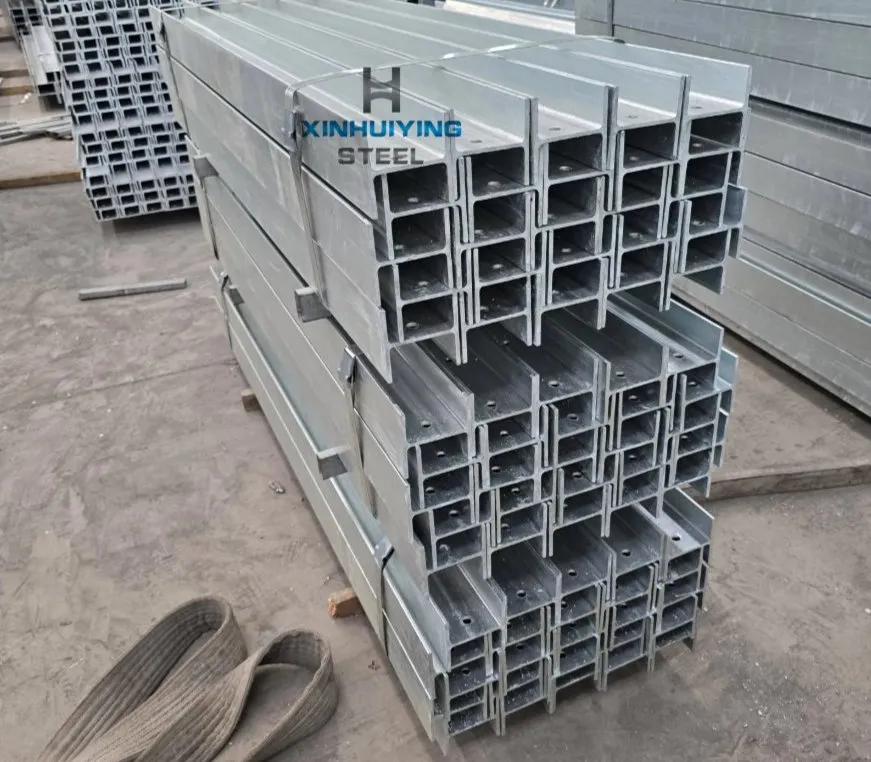

Middle joiner post for straight sections. Compatible with concrete and timber sleepers.

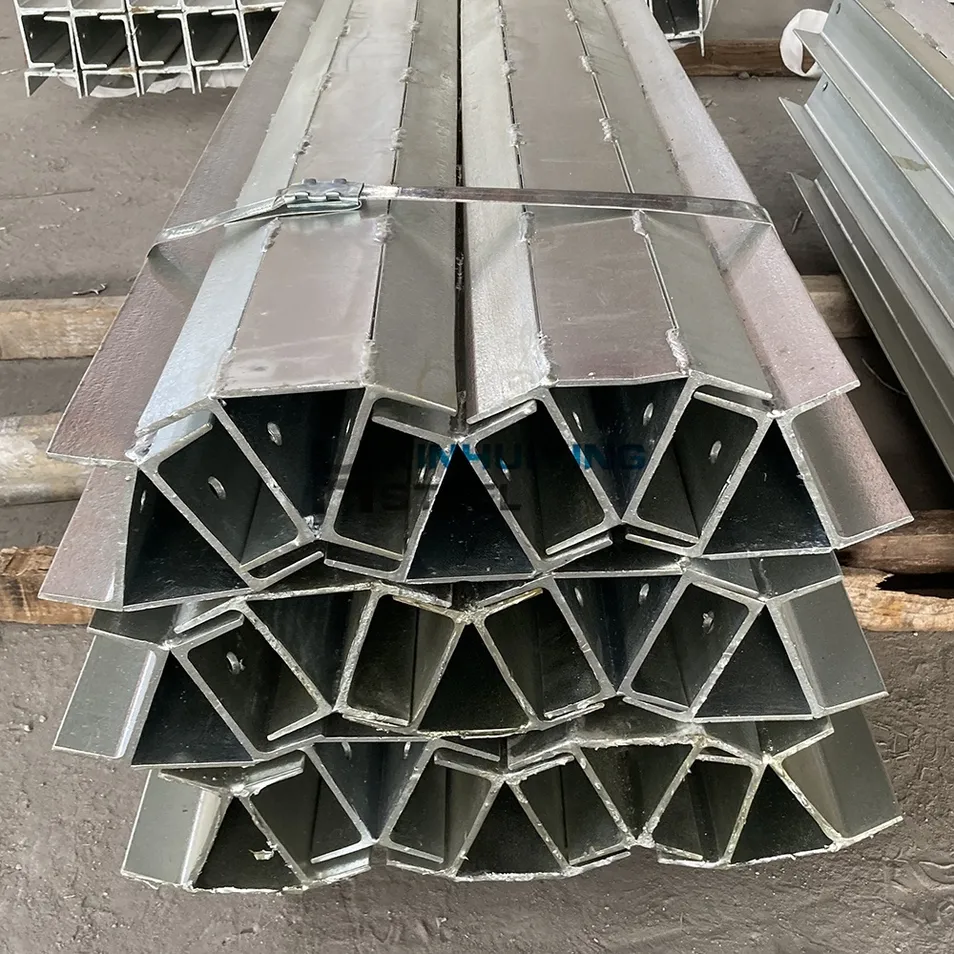

Ideal for gentle deviations in the retaining wall path. Manufactured by welding PFC posts.

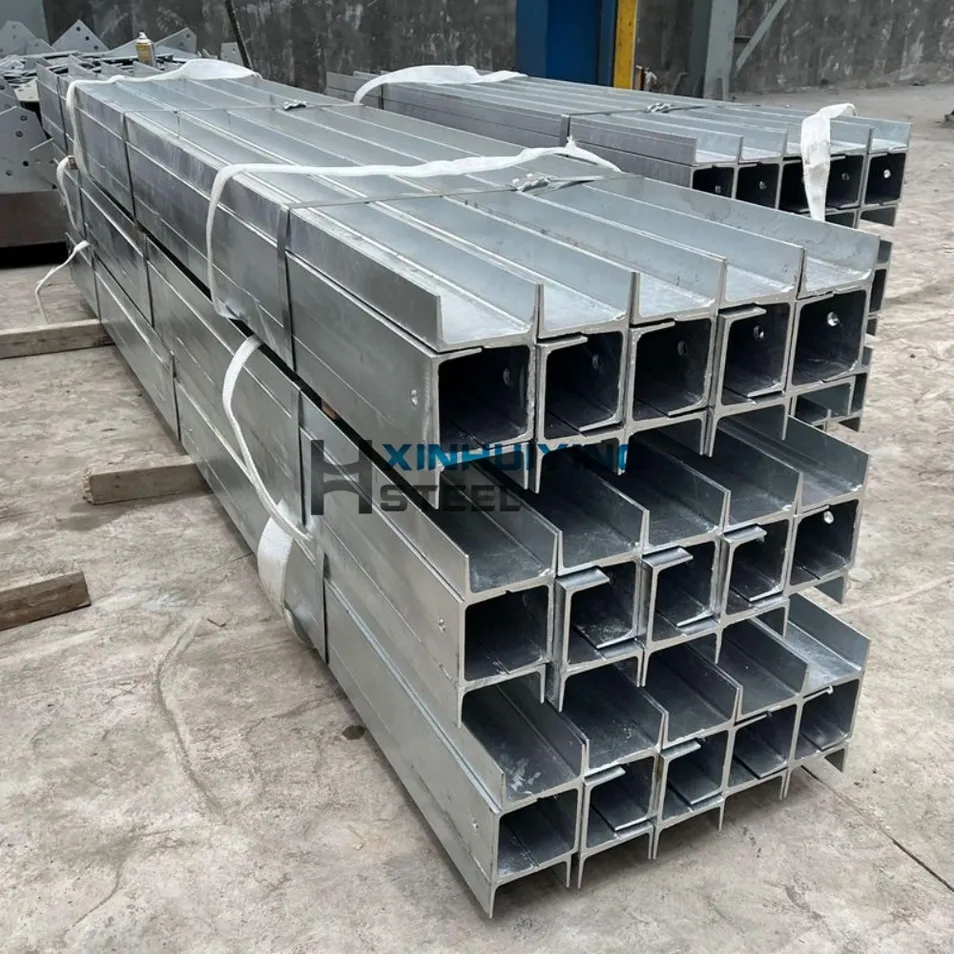

Heavy-duty solution for hard 90-degree corners in structural walls.
