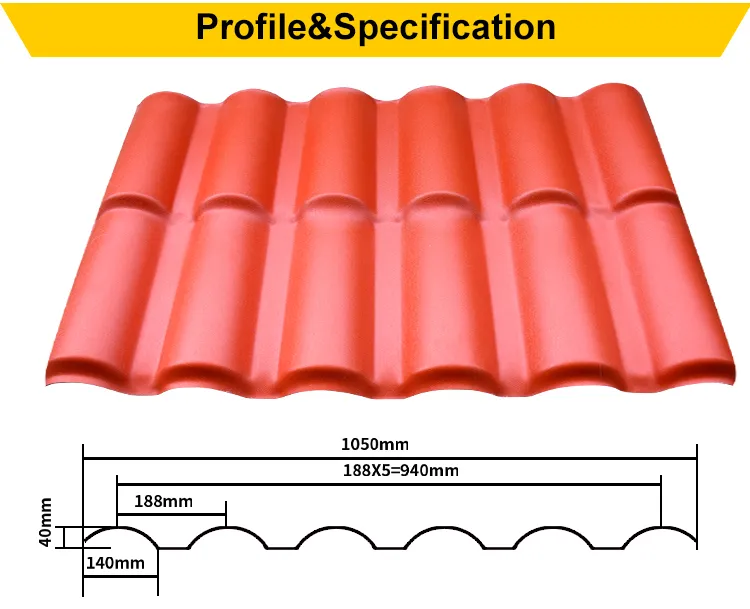

| Parameter | Specification Details | ||
|---|---|---|---|
| Type | ASA Synthetic Resin Roof Tile | ||
| Total Width | 880mm, 1050mm | ||
| Effective Width | 800mm, 960mm | ||
| Length | Customized (Multiples of 219mm) | ||
| Thickness (mm) | 2.0mm ± 0.1 | 2.5mm ± 0.1 | 3.0mm ± 0.1 |
| Weight (kg/m²) | 4.0 ± 0.1 | 5.0 ± 0.1 | 6.0 ± 0.1 |
| Wave Height | 30mm | ||
| Pitch | 219mm | ||

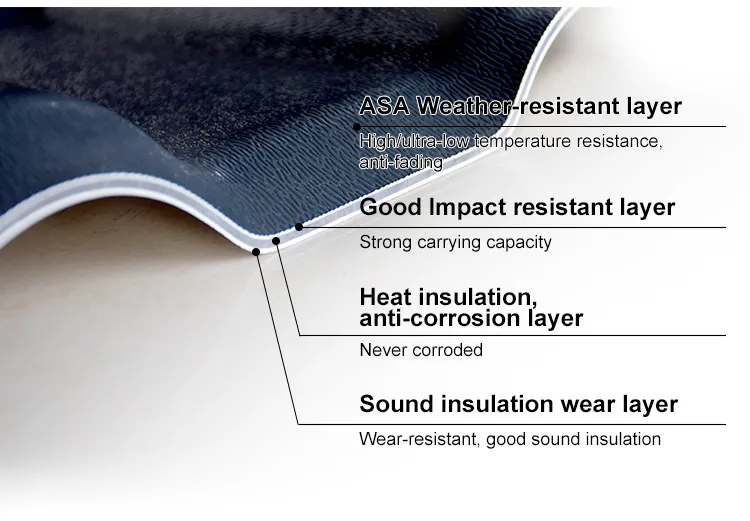

Our synthetic resin roofing tiles utilize European co-extrusion technology with a multi-layer structure for maximum durability:
A Layer (Surface): ASA high weather-resistant engineering plastic. Ensures color stability for over 10 years and protects against UV radiation.
C Layer (Middle): Lightproof modified PVC resin. Provides superb rigidity and toughness while blocking out sunlight.
B Layer (Sub-layer): Tough, white material designed to increase durability and enhance the sense of space and brightness within the building.

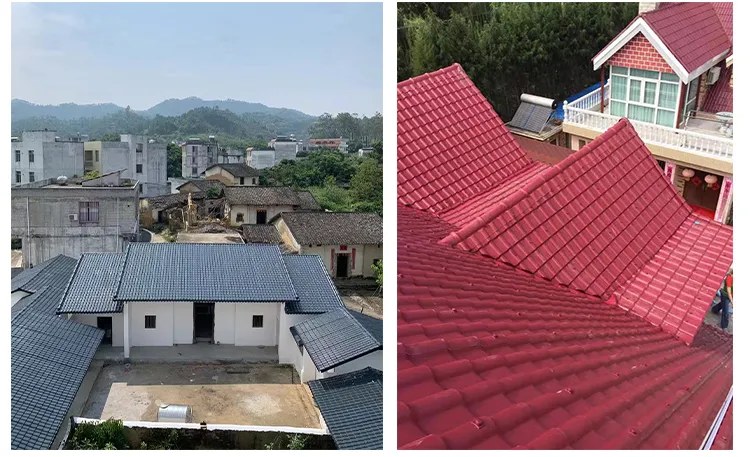

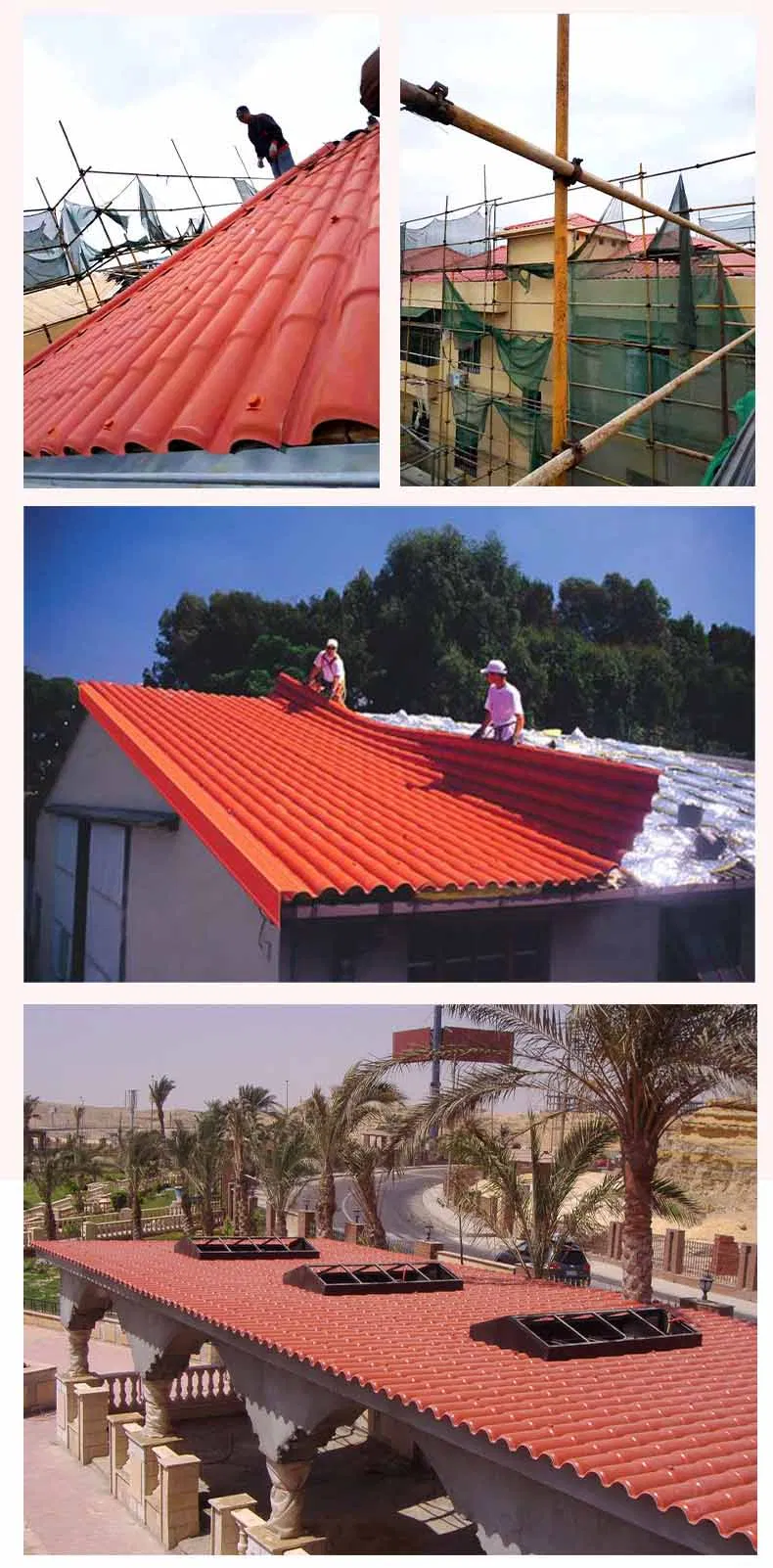

Widely used in Western-style antique buildings, high-end residential projects, historical sites (churches, temples), and tourist attractions requiring a classic Roma style aesthetic.

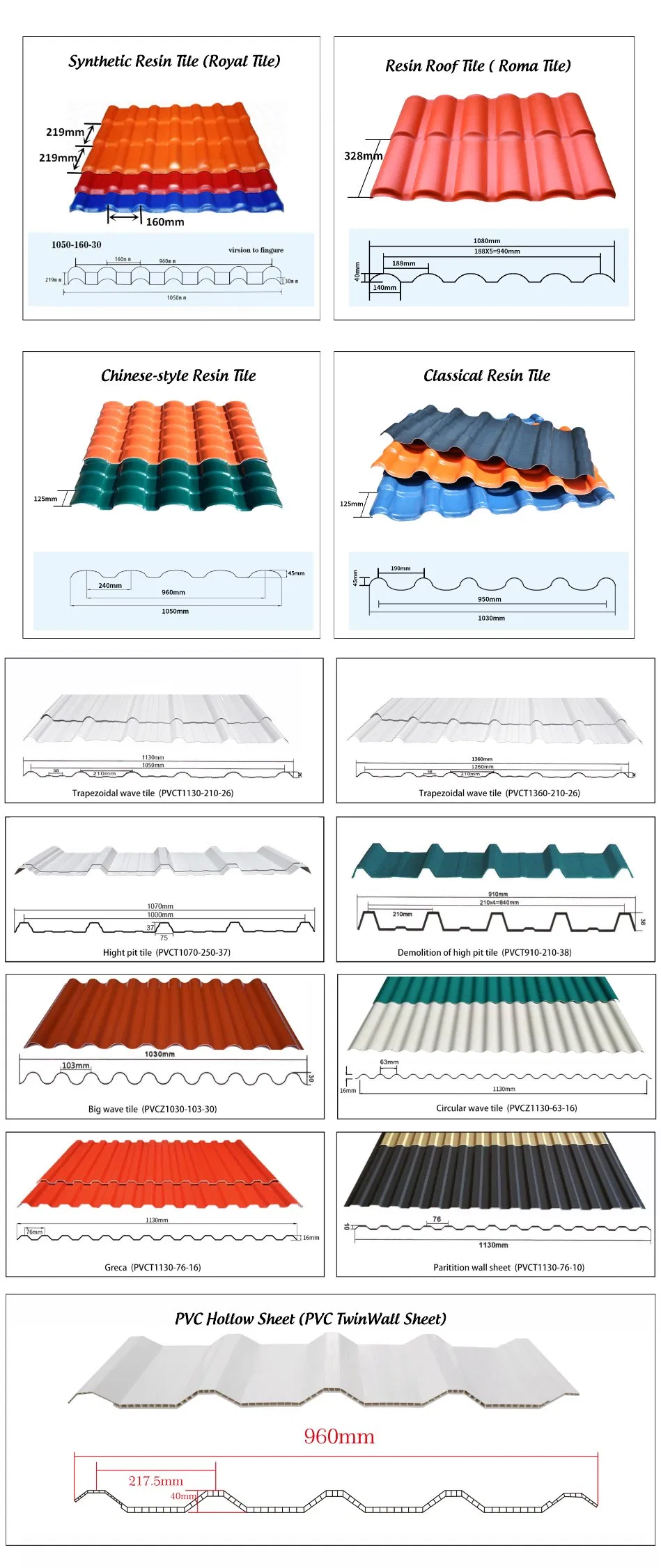

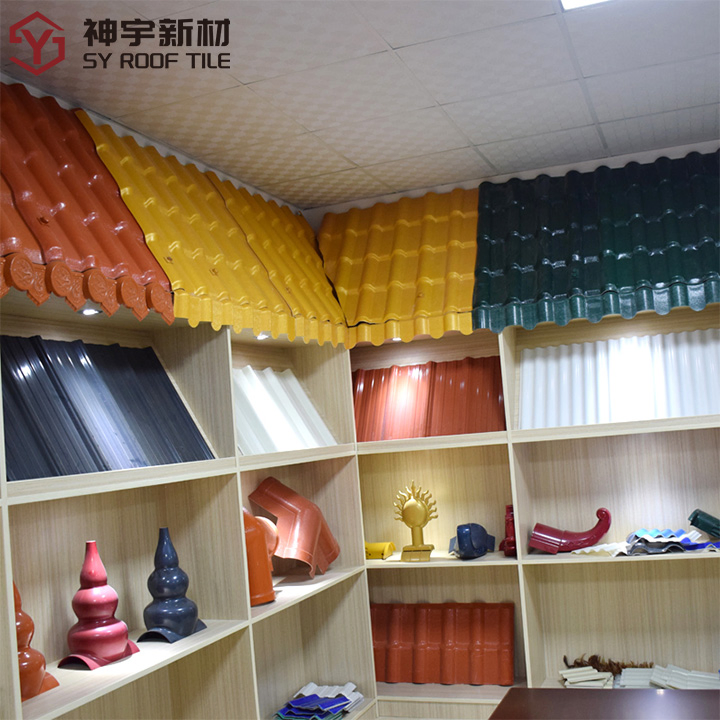

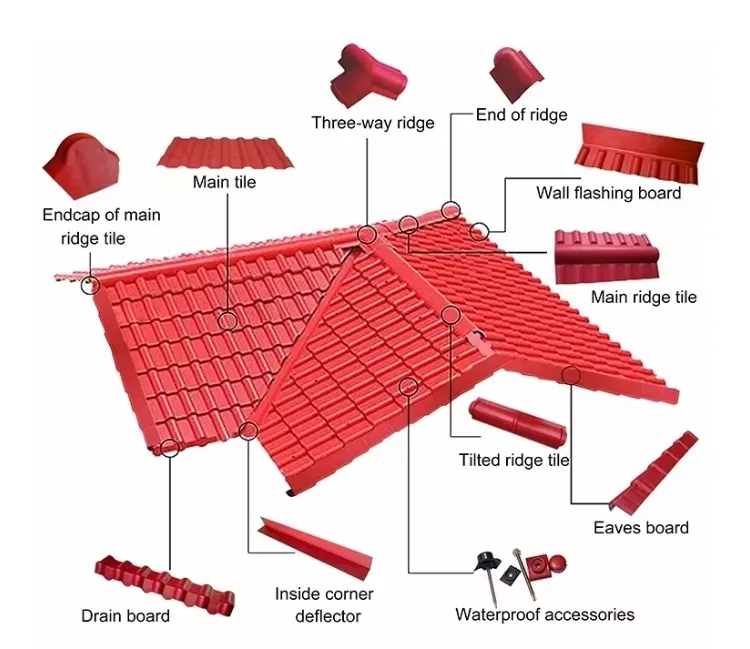

We offer a comprehensive range of roofing profiles:
